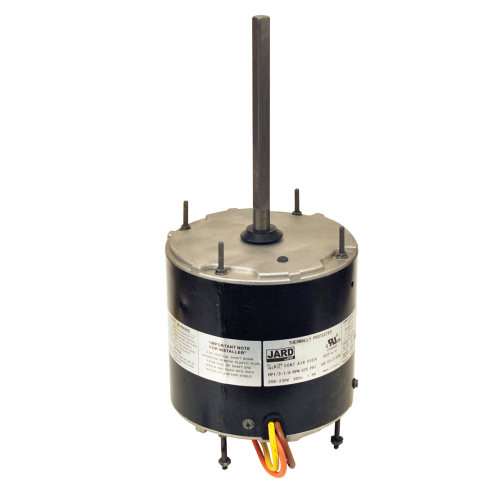

Rectorseal m22459 Condenser Fan Motor 1/3-1/8 Hp

Product Description

The RECTORSEAL m22459 is a multi-horsepower condenser fan motor designed for residential and light commercial air conditioning and heat pump systems. Rated from 1/8 HP to 1/3 HP, it operates on 208-230 volt power at 825 RPM, making it a versatile replacement option for outdoor condensing unit applications. The motor ships with a water slinger on the shaft to direct moisture away from internal components, extending service life in outdoor environments. Licensed HVAC technicians install this motor as a direct replacement during condenser fan motor failures or planned maintenance upgrades.

The m22459 is suited for outdoor condensing units in residential A/C and heat pump systems. It is configured with Rheem-style mounting holes with screws pre-installed, supporting both through-bolt and band mounting arrangements. The multi-horsepower design allows a single motor to serve across a range of condenser unit configurations, reducing the need to stock multiple SKUs in a service vehicle.

Key Features

• Multi-horsepower range: 1/8 HP to 1/3 HP for flexible replacement coverage
• 208-230 volt operation for standard residential and light commercial systems
• 825 RPM output speed for condenser fan airflow applications
• Water slinger on shaft for outdoor moisture management
• Rheem-style mounting holes with screws pre-installed
• Supports through-bolt and band mounting configurations
• Rated for A/C and heat pump duty cycles

Compatibility

Designed as an OEM-style replacement condenser fan motor for residential and light commercial air conditioning and heat pump condensing units requiring a 208-230 volt, 825 RPM motor with Rheem-style mounting.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the condensing unit before removing the existing motor or handling wiring. Verify shaft direction, rotation, and capacitor rating match the original motor specification before energizing the unit. Refer to the equipment manufacturer wiring diagram and applicable local codes when making electrical connections.

Technical Specifications

• Horsepower: 1/8 to 1/3 HP (multi-horsepower)
• Voltage: 208-230 volts
• Speed: 825 RPM
• Application: Condenser fan, A/C and heat pump duty
• Mounting: Through-bolt or band mount, Rheem-style mounting holes with screws installed
• Shaft Feature: Water slinger included

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: m22459
