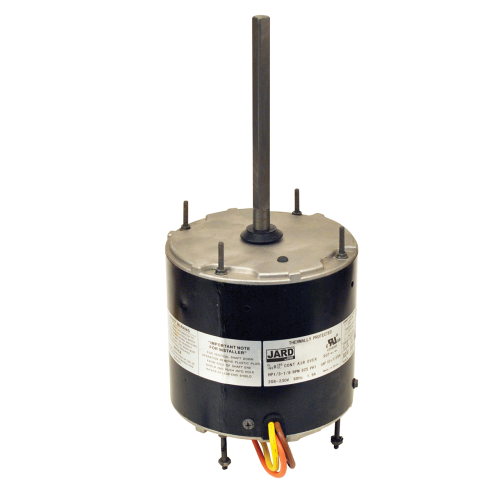

Rectorseal m22458 Condenser Fan Motor 1/3-1/6 Hp

Product Description

The RECTORSEAL m22458 is a multi-horsepower condenser fan motor designed for outdoor condensing unit service in residential and light commercial HVAC applications. Rated at 1/3 to 1/6 HP and operating on 208-230 volts at 1075 RPM, this motor delivers reliable airflow across a range of cooling and heat pump system demands. It ships with Rheem-pattern mounting holes and screws pre-installed, and includes a water slinger on the shaft to deflect moisture away from the motor body during outdoor operation. Licensed HVAC technicians performing condenser unit repairs or motor replacements will find the hardware-inclusive design reduces bench time.

This motor is rated for air conditioning and heat pump duty, making it suitable for seasonal cooling as well as year-round heat pump systems. The multi-horsepower design allows a single unit to serve installations originally calling for either a 1/6 HP or 1/3 HP motor, reducing the number of stocked replacement SKUs a service vehicle needs to carry. Thru-bolt or band mounting configurations are supported, accommodating a range of condenser unit cabinet styles commonly found in residential split systems.

Key Features

• Multi-horsepower rating: 1/6 HP to 1/3 HP covers two common condenser motor sizes
• 208-230V operation compatible with standard residential and light commercial power supplies
• 1075 RPM fixed speed suitable for direct-drive condenser fan blade applications
• Rheem mounting hole pattern with screws pre-installed for drop-in serviceability
• Water slinger on shaft provides moisture protection for outdoor installations
• Supports thru-bolt or band mounting for flexible cabinet fitment

Compatibility

Designed as an OEM-style replacement condenser fan motor for residential air conditioning and heat pump condensing units requiring a 208-230V, 1075 RPM, 1/6 to 1/3 HP motor with Rheem-pattern mounting. Thru-bolt and band mounting support broadens fitment across multiple condensing unit cabinet styles.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the condensing unit before removing the existing motor or any wiring. Confirm shaft orientation, rotation direction, and blade pitch match the original motor before securing the replacement. Follow local electrical codes and the equipment manufacturer service documentation when reconnecting motor leads and restoring power.

Technical Specifications

• Horsepower: 1/6 to 1/3 HP (multi-horsepower)
• Voltage: 208-230 volts
• Speed: 1075 RPM
• Application: Air conditioning and heat pump condenser fan duty
• Mounting: Thru-bolt or band mount
• Included Hardware: Rheem mounting screws pre-installed, water slinger on shaft

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: m22458
