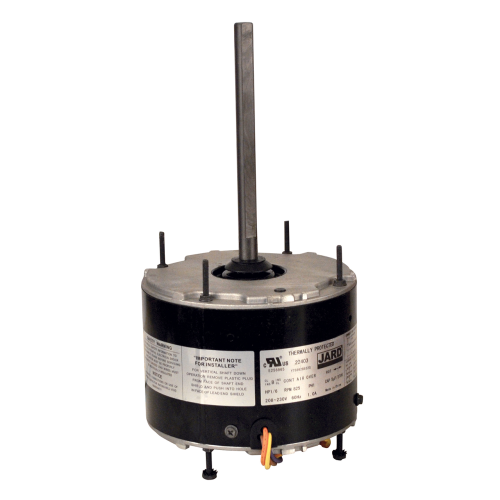

Rectorseal M22403 Condenser Fan Motor 1/6 Hp 825 Rpm

Product Description

The RECTORSEAL M22403 is a condenser fan motor designed for use in air-cooled condensing units and split-system air conditioning equipment. Rated at 1/6 horsepower and operating on 208-230 volts, this motor runs at 825 RPM and drives the condenser fan blade to move air across the condenser coil, rejecting heat from the refrigerant circuit. Licensed HVAC technicians install this motor as a direct replacement when a failed condenser fan motor causes high-head pressure faults, compressor trips, or unit lockout. It is suited for residential and light commercial HVAC applications.

This motor is intended for outdoor condenser units where reliable low-speed airflow across the condenser coil is critical to system efficiency and compressor longevity. The 825 RPM speed rating is typical of condenser fan applications requiring steady, sustained airflow rather than high-velocity output. Technicians replacing a failed OEM condenser fan motor will evaluate shaft diameter, rotation direction, mounting configuration, and capacitor rating before installation to confirm fitment.

Key Features

• 1/6 HP output suitable for standard residential and light commercial condenser fan duty
• 208-230 volt operating range accommodates common single-phase power supplies
• 825 RPM speed rating matched to condenser fan airflow requirements
• Replacement-grade design for failed condenser fan motor service calls
• Outdoor-rated construction appropriate for exposed condensing unit environments

Compatibility

Designed as an OEM-style replacement condenser fan motor for residential and light commercial air-cooled condensing units requiring a 1/6 HP, 208-230 volt, 825 RPM motor. Verify shaft diameter, rotation direction, mounting configuration, and run capacitor rating before installation.

Installation Notes

Condenser fan motor replacement is performed by a licensed HVAC technician. Disconnect and lock out power to the condensing unit at the disconnect block before removing the fan assembly. Confirm the correct rotation direction, shaft diameter, and run capacitor MFD rating before wiring the replacement motor. Follow NEC requirements for disconnect means and wiring methods when servicing outdoor condensing equipment.

Technical Specifications

• Horsepower: 1/6 HP
• Voltage: 208-230 volts
• Speed: 825 RPM
• Application: Condenser Fan Motor

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M22403
