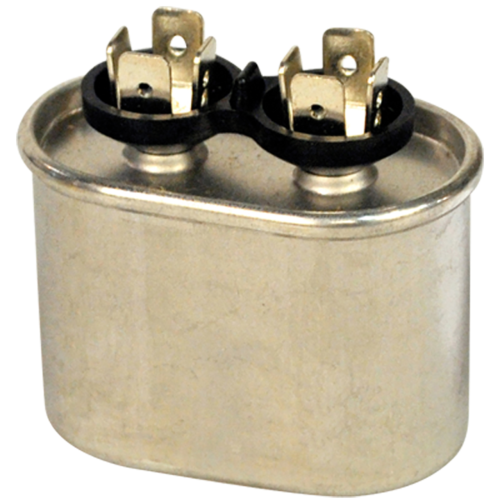

Rectorseal m14032 Run Capacitor 10 Mfd 440/370V

Product Description

The RECTORSEAL m14032 is a single-run capacitor rated at 10 microfarads (MFD) with dual voltage compatibility at 440/370 volts. It is designed to maintain a continuous phase shift in single-phase PSC motors found in HVAC condensers, air handlers, and heat pumps. The capacitor supports stable motor starting torque and sustained running efficiency under normal operating conditions. It is non-PCB in construction and includes a physical interrupter for added safety during overcurrent events. Licensed HVAC technicians install this type of component during compressor, condenser fan motor, or blower motor service calls.

This run capacitor is suited for residential and light commercial HVAC applications where a 10 MFD, 440/370-volt oval-style capacitor is required. Typical installations include split-system air conditioners, heat pumps, and package units using single-phase PSC motors. The dual-voltage rating gives technicians flexibility when servicing equipment rated at either 370 or 440 volts. It is manufactured in the USA and carries UL and CUL listings, meeting EIA-456A industry standards for 60,000 hours of service life and Tecumseh H-213 OEM grade requirements.

Key Features

• 10 MFD capacitance at 440/370 volts dual-voltage rating
• Non-PCB construction for compliant, safe disposal
• Physical interrupter provides protection during overcurrent conditions
• Meets EIA-456A standard rated for 60,000 hours of service life
• Meets Tecumseh H-213 OEM grade specification
• UL and CUL listed, manufactured in the USA

Compatibility

Designed as an OEM-grade replacement run capacitor for single-phase PSC motors in residential and light commercial HVAC systems requiring a 10 MFD 440/370-volt oval capacitor.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the unit before handling capacitors, as they retain a charge even after power is removed — discharge safely using an insulated resistor tool before touching terminals. Verify the MFD rating and voltage rating on the existing capacitor before installing a replacement. Follow all applicable local codes and NEC guidelines when servicing electrical components in HVAC equipment.
