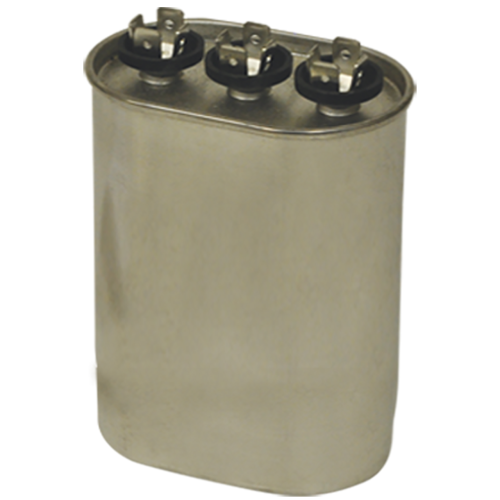

Rectorseal M12069 Dual Run Capacitor 30/5 Mfd 370V Oval

Product Description

The RECTORSEAL M12069 is a dual run capacitor rated at 30/5 microfarads (MFD) and 370 volts, designed for use in residential and light commercial HVAC systems. This oval-style capacitor supports both the compressor and the fan motor from a single unit, reducing component count in the condensing unit. It provides the phase-shifted current needed to start and run PSC motors efficiently. HVAC technicians install this capacitor as a direct replacement during preventive maintenance or when diagnosing motor start or run failures in split-system air conditioners and heat pumps.

This capacitor is suited for installation in outdoor condensing units where a single dual-run capacitor serves both the compressor and condenser fan motor. The oval form factor fits standard capacitor mounting brackets common in residential equipment. Technicians typically encounter this part during summer service calls when heat-related capacitor failure causes compressor or fan motor issues.

Key Features

• Dual-run design powers both compressor and condenser fan motor from one capacitor
• Rated 30/5 MFD for compatibility with common PSC compressor and fan motor combinations
• 370-volt rating suitable for standard single-phase residential HVAC applications
• Oval housing fits standard condensing unit capacitor brackets
• Compact dimensions support installation in tight electrical compartments

Compatibility

Designed as an OEM-style replacement dual run capacitor for residential and light commercial split-system air conditioners and heat pumps using PSC compressor and fan motor configurations.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out power to the condensing unit before servicing any capacitor. Capacitors retain a charge even after power is removed — discharge the capacitor safely using an approved discharge tool before handling. Verify the MFD and voltage ratings match the equipment nameplate requirements before installing the replacement.

Technical Specifications

• Capacitance: 30/5 MFD
• Voltage Rating: 370 volts
• Shape: Oval
• Width: 1.806 inches
• Length: 2.806 inches
• Height: 3.5 inches
• UPC: 685744120698

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M12069
