Rectorseal M12051 Run Capacitor 60 Mfd 440V Oval

Product Description

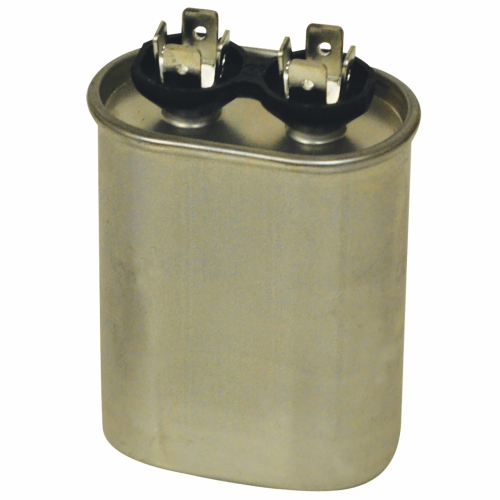

The RECTORSEAL M12051 is an oval run capacitor rated at 60 microfarads (MFD) and 440 volts, designed to support the continuous operation of single-phase motors in HVAC equipment. Run capacitors maintain a phase shift in the motor winding to keep the motor running efficiently after startup. This capacitor is a direct-replacement component used in compressors, condenser fan motors, and air handler blower motors. Licensed HVAC technicians and refrigeration mechanics are the primary installers. At 60 MFD and 440V, it is sized for higher-load motor applications common in residential and light commercial condensing units.

This capacitor is suited for single-phase motor circuits in residential and light commercial HVAC systems, including central air conditioning condensing units and heat pump outdoor units. The oval form factor fits standard capacitor brackets in most outdoor unit control compartments. It is typically installed as a replacement during routine compressor or condenser fan motor service calls when capacitance has degraded below rated tolerance.

Key Features

• 60 MFD rated capacitance for higher-load single-phase motor applications
• 440-volt rating provides margin above standard 370-volt motor circuits
• Oval case fits standard condenser unit capacitor mounting brackets
• Compact dimensions suit confined control compartment spaces

Compatibility

Designed as an OEM-style replacement run capacitor for single-phase motors in residential and light commercial HVAC condensing units and air handlers requiring a 60 MFD 440-volt oval capacitor.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the unit before opening the control compartment or handling capacitor terminals. Capacitors store a lethal charge even after power is removed — discharge the existing capacitor through a resistor before handling. Verify the replacement MFD rating and voltage rating match the equipment nameplate requirements before installation.

Technical Specifications

• Capacitance: 60 MFD
• Voltage Rating: 440 volts
• Shape: Oval
• Width: 1.88 inches
• Length: 3.56 inches
• Height: 4.25 inches
• UPC: 685744120513

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M12051
