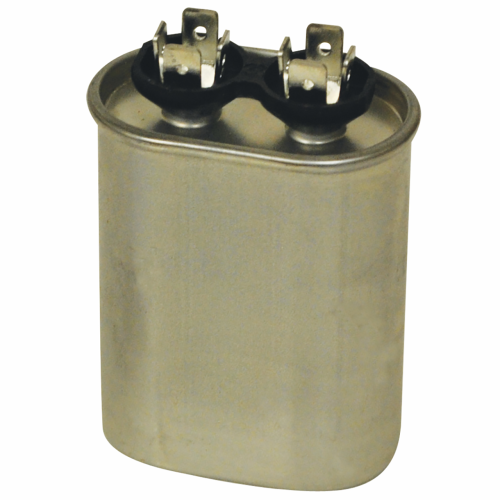

Rectorseal M12015 Run Capacitor 25 Mfd 370V Oval

Product Description

The RECTORSEAL M12015 is a 25 microfarad (MFD), 370-volt oval run capacitor designed to support the continuous operation of single-phase motors in HVAC equipment. Run capacitors maintain the phase shift needed to keep compressor and fan motors running efficiently after startup. This unit is rated at 25 MFD and 370 volts, making it a direct fit for a range of residential and light commercial cooling and heating applications. It measures 1.806 inches wide by 2.806 inches long by 3.125 inches tall. Licensed HVAC technicians typically handle replacement during routine service calls or compressor and condenser fan motor diagnostics.

This capacitor is suited for residential and light commercial HVAC systems where oval-style run capacitors are specified. Common install scenarios include condenser fan motor replacement, compressor circuit service, and seasonal maintenance where a failed or weak capacitor is identified through capacitance testing. The oval form factor fits standard capacitor brackets found in most packaged units and split-system condensers.

Key Features

• 25 MFD capacitance rating for sustained motor run support
• 370-volt rating suitable for standard single-phase HVAC motor circuits
• Oval form factor fits common condenser and air handler capacitor brackets
• Compact dimensions: 1.806 x 2.806 x 3.125 inches
• Direct replacement form for oval run capacitors in residential and light commercial equipment

Compatibility

Designed as an OEM-style replacement oval run capacitor for residential and light commercial HVAC systems requiring a 25 MFD, 370-volt rated component.

Installation Notes

Run capacitor replacement is performed by licensed HVAC technicians. Always disconnect and lock out power to the unit before handling capacitors, and discharge the capacitor terminals using an insulated resistor or discharge tool before removal — capacitors retain a lethal charge even after power is cut. Verify the MFD rating and voltage rating on the existing capacitor before installing a replacement. Work should comply with applicable local electrical codes and NEC guidelines.

Technical Specifications

• Capacitance: 25 MFD
• Voltage Rating: 370 volts
• Shape: Oval
• Width: 1.806 inches
• Length: 2.806 inches
• Height: 3.125 inches
• UPC: 685744120155

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M12015
