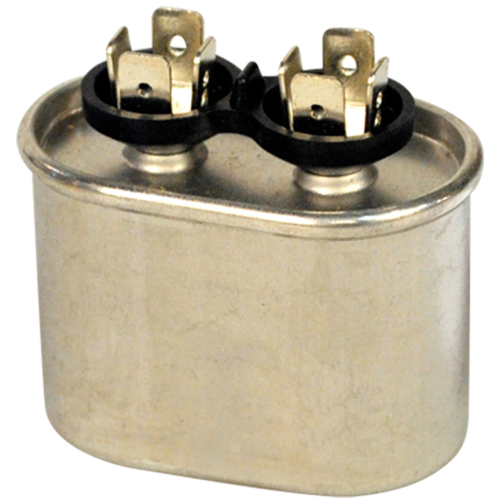

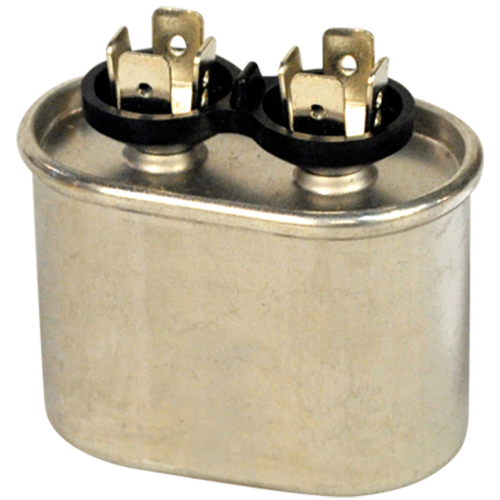

Rectorseal M12002 Run Capacitor 2 Mfd 370V Oval

Product Description

The RECTORSEAL M12002 is a single-capacitance run capacitor rated at 2 microfarads (MFD) and 370 volts, designed for continuous-duty motor run applications in air conditioning and refrigeration equipment. Built with an aluminum composition and housed in an oval case, it maintains stable capacitance across a wide temperature range of -40 degrees F to 158 degrees F. With a rated operational life of 60,000 hours and compatibility with both 50 Hz and 60 Hz systems, this capacitor is a dependable replacement component installed by licensed HVAC technicians and refrigeration mechanics.

The M12002 is suited for residential and commercial AC systems and refrigeration equipment where a low-MFD oval run capacitor is required. Its oval form factor fits standard capacitor brackets and mounting clips found in common condensing units and refrigeration compressor compartments. The 4-terminal configuration supports standard wiring connections for single-capacitance motor run circuits. This capacitor is appropriate for any installation where an OEM-rated 2 MFD, 370-volt oval run capacitor is called for.

Key Features

• 2 MFD single-capacitance rating for motor run circuits
• 370-volt operating voltage suits common residential and light commercial equipment
• Oval aluminum housing fits standard bracket mounts
• Wide temperature range: -40 degrees F to 158 degrees F
• Rated operational life of 60,000 hours
• Compatible with 50 Hz and 60 Hz electrical systems

Compatibility

Designed as an OEM-style replacement run capacitor for residential and commercial air conditioning and refrigeration systems requiring a 2 MFD, 370-volt oval single-capacitance capacitor.

Installation Notes

Run capacitor replacement is performed by licensed HVAC technicians or refrigeration mechanics. Always disconnect and lock out power to the unit before servicing capacitors, and discharge any stored voltage in the existing capacitor using an approved discharge tool before handling. Verify the MFD rating and voltage rating of the replacement match the equipment nameplate before installation. Work on capacitors and associated electrical components must comply with applicable local electrical codes and the NEC.

Technical Specifications

• Capacitor Type: Single Capacitance
• MFD Rating: 2 MFD
• Operating Voltage: 370 volts
• Shape: Oval
• Terminals: 4
• Composition: Aluminum
• Frequency: 50/60 Hz
• Max Rated Temperature: 70 degrees F
• Min Rated Temperature: -40 degrees F
• Operational Life: 60,000 hours
• Recommended Use: Residential and Commercial AC and Refrigeration

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M12002
