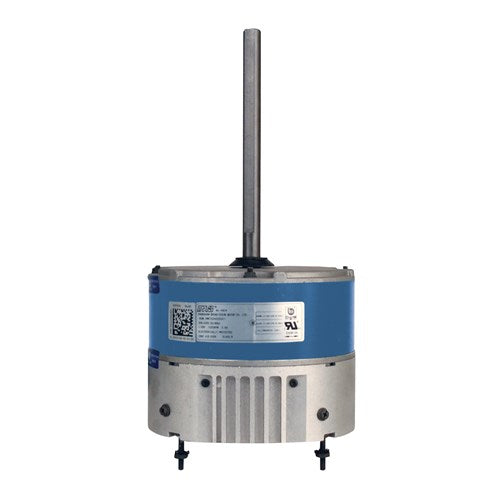

Rectorseal M10875 Ecm Condenser Fan Motor 1/8-1/3 Hp

Product Description

The RECTORSEAL M10875 is an ECM (electronically commutated motor) condenser fan motor rated from 1/8 to 1/3 horsepower, designed for horizontal-mount configurations in air-cooled condensing units. ECM technology delivers variable-speed efficiency gains over traditional PSC motors, reducing energy consumption and heat rejection losses in the condenser section. This motor is installed by licensed HVAC technicians as a direct replacement component in residential and light commercial refrigeration and air conditioning systems where a horizontal shaft orientation is required.

The M10875 is suited for horizontal-mount condenser fan applications found in rooftop units, split-system condensers, and package equipment that require a compact ECM solution across the 1/8 to 1/3 HP power range. Its variable horsepower range makes it adaptable to a variety of unit sizes without stocking multiple motor SKUs. Installation is typical on equipment where the motor shaft runs parallel to the ground, as opposed to vertical-shaft downflow configurations.

Key Features

• ECM design for improved efficiency compared to standard PSC condenser fan motors
• Horsepower range of 1/8 to 1/3 HP covers multiple unit configurations
• Horizontal-mount orientation for equipment requiring a parallel shaft installation
• Drop-in replacement form factor for compatible condensing unit applications

Compatibility

Designed as an OEM-style replacement ECM condenser fan motor for horizontal-mount residential and light commercial air conditioning and refrigeration condensing units in the 1/8 to 1/3 HP range.

Installation Notes

Installation should be performed by a qualified HVAC technician. Disconnect and lock out all electrical power to the condensing unit before removing the existing motor. Verify shaft orientation, rotation direction, and wiring connections match the original motor before energizing the replacement. ECM motors may require a compatible module or controller — confirm system compatibility before installation.

Technical Specifications

• Motor Type: ECM (Electronically Commutated Motor)
• Horsepower Range: 1/8 to 1/3 HP
• Mount Orientation: Horizontal
• Application: Condenser Fan

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M10875
