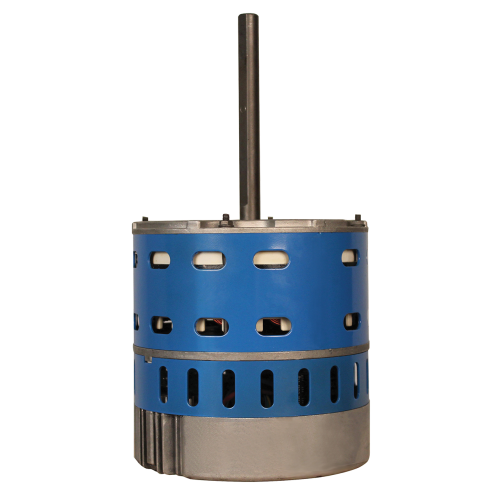

Rectorseal M10867 Ecm Condenser Fan Motor 1/3 Hp

Product Description

The RECTORSEAL M10867 is an ECM (electronically commutated motor) condenser fan motor designed to replace PSC motors in residential and light commercial HVAC applications. Rated up to 1/3 HP with a 42 frame footprint, it operates at 1075 RPM within a 925 to 1200 RPM range and delivers five selectable speeds. The drip proof enclosure suits outdoor condenser and air handler installations, while the electronic thermal protection guards against overheating. Ball bearings support continuous-duty operation, making this motor a direct-fit upgrade path for aging PSC fan motors.

This motor is suited for single-phase residential condensing units and fan coil applications where a 42 frame ECM replacement is needed. The reverse rotation configuration makes it appropriate for condenser fan assemblies requiring standard outdoor fan blade orientation. HVAC technicians replacing failed or inefficient PSC motors with an ECM solution will find the 42 frame mounting and 1/8 to 1/3 HP operating range fits a broad range of residential equipment.

Key Features

• ECM motor type replaces PSC motors for improved efficiency in condenser fan applications
• Five selectable speeds within a 925 to 1200 RPM range for flexible airflow tuning
• 42 frame construction for broad OEM-style fitment in residential systems
• Drip proof enclosure rated for outdoor condenser unit exposure
• Electronic thermal protection prevents motor damage from overheating
• Continuous-duty rating with ball bearing construction for extended service life

Compatibility

Designed as an OEM-style ECM replacement for single-phase residential and light commercial condenser fan applications requiring a 42 frame motor in the 1/8 to 1/3 HP range with reverse rotation.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the condensing unit before removing the existing motor. Verify that the replacement motor frame, shaft diameter, and rotation direction match the application before mounting. Refer to the equipment manufacturer wiring diagram and applicable NEC requirements when making electrical connections.

Technical Specifications

• Motor Type: ECM
• HP (Maximum): 1/3
• Frame: 42
• Phase: Single
• RPM: 1075
• RPM Range: 925 to 1200
• Speeds: 5
• Rotation: Reverse
• Bearing Type: Ball
• Duty: Continuous
• Enclosure: Drip Proof
• Thermal Protection: Electronic
• Service Factor: 1.0

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M10867
