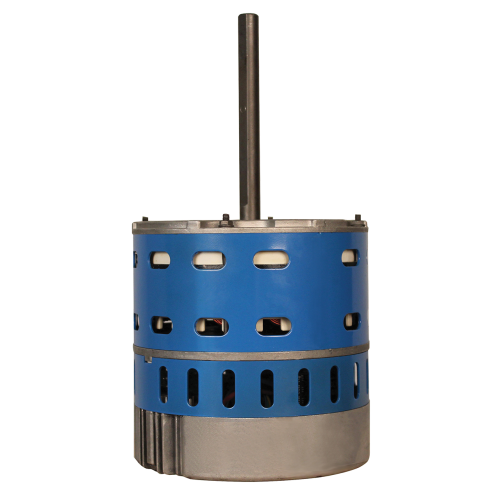

Rectorseal m10859 Ecm Blower Motor 1/2-1 Hp Constant Torque

Product Description

The RECTORSEAL m10859 is an X13 constant-torque ECM direct-drive blower motor designed to replace failed or underperforming blower motors in forced-air HVAC systems. Rated from 1/2 to 1 HP, it uses electronically commutated motor technology to deliver precise airflow across varying static pressure conditions. Built-in Bluetooth control pairs with the free AZURE ECM mobile app, allowing technicians to configure torque settings, verify operation, and troubleshoot without disconnecting the motor from the system. Ball bearing construction and integrated thermal overload protection support long service life in continuous-duty residential and light-commercial applications.

This motor is suited for residential and light-commercial forced-air gas furnaces, air handlers, and fan coils where an X13 or constant-torque ECM blower motor is required. The kit includes an Ensite adapter, a direct-connect harness, and a factory-style harness, enabling the motor to connect directly to existing OEM wiring harnesses without additional adapters in most retrofit scenarios. HVAC technicians performing blower motor changeouts will find the multi-harness kit significantly reduces wiring modification time on the job.

Key Features

• ECM constant-torque X13 technology maintains consistent airflow across changing system static pressure
• Bluetooth connectivity pairs with the free AZURE ECM app for field configuration and diagnostics
• Connects directly to OEM harnesses via included Ensite adapter, direct-connect, and factory harness options
• Ball bearing construction for extended service life in continuous-duty blower applications
• Integrated thermal overload protection guards against motor damage due to overheating
• 1/2 to 1 HP operating range covers a broad range of residential and light-commercial blower applications

Compatibility

Designed as an OEM-style replacement for residential and light-commercial forced-air systems requiring an X13 or constant-torque ECM direct-drive blower motor. Specific system compatibility should be verified against the existing motor nameplate and OEM documentation before installation.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the air handler or furnace before removing the existing blower motor. Verify the replacement motor rotation direction, HP rating, and harness configuration match the original equipment requirements before energizing. Bluetooth commissioning via the AZURE ECM app should be completed after mechanical installation and prior to returning the system to service.

Technical Specifications

• Motor Type: ECM Direct Drive, Constant Torque (X13)
• Horsepower Range: 1/2 to 1 HP
• Control: Bluetooth via AZURE ECM app
• Bearing Type: Ball bearing
• Overload Protection: Thermal overload protection
• Included Accessories: Ensite adapter, direct-connect harness, factory harness

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: m10859
