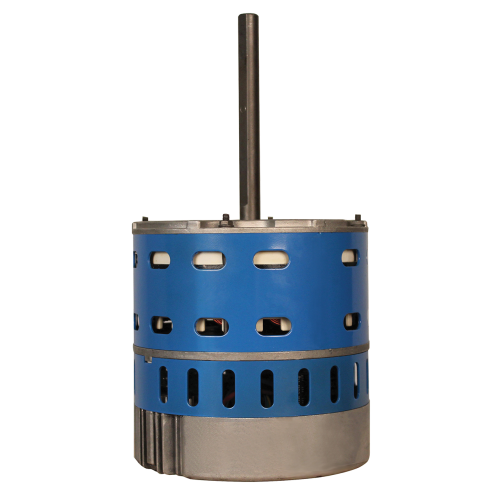

Rectorseal m10858 Ecm Constant Torque Blower Motor

Product Description

The RECTORSEAL m10858 is an ECM direct drive, constant torque blower motor designed as a universal replacement for X13 and constant torque motor applications ranging from 1/5 HP to 1/2 HP. It connects directly to OEM harnesses, eliminating the need to splice or rewire during installation. Bluetooth control is built in and managed through the free AZURE ECM app, allowing technicians to commission, configure, and monitor motor operation from a mobile device. Ball bearing construction and integrated thermal overload protection contribute to reliable long-term operation in air handler and furnace blower applications.

This motor is intended for residential and light commercial HVAC systems that originally used X13 or constant torque ECM blower motors. It is suited for direct drive air handler blower decks and gas furnace blower assemblies where field-replaceable ECM motors are required. The included Ensite Adapter, Direct Connect option, and factory harness provide flexible interface with a wide range of OEM control boards, reducing diagnostic time and parts inventory on the service truck.

Key Features

• Direct OEM harness connection via included Ensite Adapter, Direct Connect, and factory harness
• Bluetooth commissioning and configuration through the free AZURE ECM mobile app
• Covers 1/5 HP to 1/2 HP horsepower range for broad replacement coverage
• Ball bearing construction for durable, low-maintenance operation
• Integrated thermal overload protection guards against motor damage from overheating
• Constant torque ECM platform maintains consistent airflow across varying static pressure conditions

Compatibility

Designed as a universal OEM-style replacement for X13 and constant torque ECM direct drive blower motors in residential and light commercial HVAC air handlers and gas furnaces.

Installation Notes

Installation should be performed by a qualified HVAC technician. Disconnect and lock out power to the air handler or furnace before removing the existing motor. Confirm the harness adapter matches the OEM connector before securing the motor in the blower deck. Use the AZURE ECM Bluetooth app to verify motor speed profile settings after installation and before returning the system to service.

Technical Specifications

• Motor Type: ECM Direct Drive, Constant Torque
• Horsepower Range: 1/5 to 1/2 HP
• Compatible Motor Platform: X13 and Constant Torque
• Bearing Type: Ball Bearing
• Overload Protection: Thermal Overload
• Control Interface: Bluetooth via AZURE ECM mobile app
• Included Accessories: Ensite Adapter, Direct Connect, Factory Harness

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: m10858
