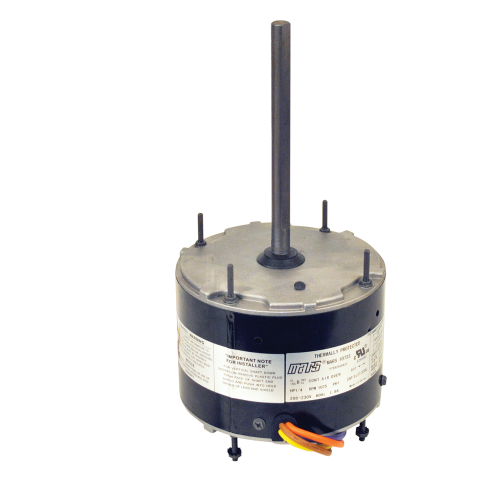

Rectorseal M10736 Condenser Fan Motor 3/4HP 208-230V 1075RPM

Product Description

The RECTORSEAL M10736 is a single-phase PSC condenser fan motor rated at 3/4 horsepower and designed for continuous-duty outdoor condenser section service. Running at 1075 RPM with a usable range of 925 to 1200 RPM, it fits the standard operating window of residential and light-commercial condensing units. The TEAO (Totally Enclosed Air Over) enclosure protects internal windings from moisture, debris, and the airstream that passes over the motor housing during operation. Ball bearings support the shaft for long service life under the sustained load typical of condenser fan applications. Licensed HVAC technicians and refrigeration mechanics are the primary installers.

This motor is suited for replacement service in air-cooled condensing units where the original motor has failed or degraded. The reverse rotation and 1075 RPM base speed match the airflow requirements of propeller-style condenser fan blades that pull air through the coil and exhaust upward through the fan deck. The 208-230 volt, single-phase rating makes it compatible with the standard residential and small-commercial power supply found across most split-system and package-unit installations.

Key Features

• 3/4 HP continuous-duty rating for sustained condenser fan operation
• TEAO enclosure shields windings in outdoor, air-over environments
• Ball bearing construction for extended service life under constant load
• PSC motor type for reliable single-phase starting and running performance
• Reverse rotation matches standard propeller-blade condenser fan configuration
• Automatic thermal protection shuts the motor down on overtemperature and resets automatically

Compatibility

Designed as an OEM-style replacement condenser fan motor for single-phase residential and light-commercial air conditioning condensing units requiring a 3/4 HP, 208-230 volt, 1075 RPM, reverse-rotation PSC motor with a TEAO enclosure.

Installation Notes

Installation should be performed by a licensed HVAC technician following local codes and the equipment manufacturer's wiring diagram. Disconnect and lock out all power to the condensing unit before removing the existing motor or fan blade. Confirm shaft diameter, mounting configuration, and blade pitch match the replacement motor before final assembly. Do not energize the unit until all wiring connections are secure and the fan blade is properly torqued to the manufacturer's specification for the blade hub.

Technical Specifications

• Horsepower: 3/4 HP
• Voltage: 208-230 volts
• RPM: 1075
• RPM Range: 925-1200
• Phase: Single
• Motor Type: PSC
• Number of Poles: 6
• Rotation: Reverse
• Speeds: 1
• Enclosure: TEAO
• Bearing Type: Ball
• Duty: Continuous
• Thermal Protection: Automatic
• Service Factor: 1.0

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M10736
