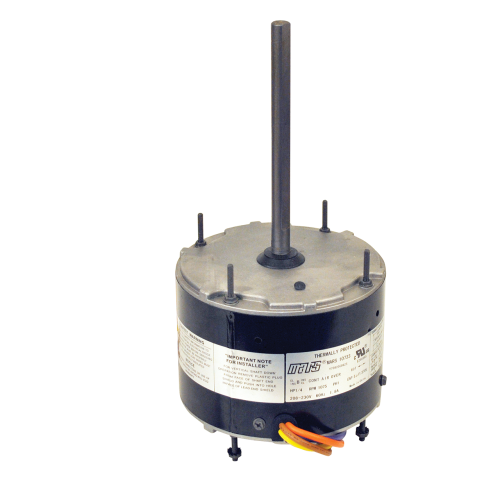

Rectorseal M10734 Condenser Fan Motor 1/3 Hp 208-230V

Product Description

The RECTORSEAL M10734 is a single-phase PSC condenser fan motor rated at 1/3 HP and designed for continuous-duty outdoor condensing unit service. Running at 1075 RPM on 208-230 volts, it uses a totally enclosed air-over (TEAO) enclosure to handle the harsh airstream environment found in residential and light commercial condensing units. Ball bearings provide long service life under the sustained load cycles typical of air conditioning season operation. Reverse rotation is standard, matching the airflow direction required by most propeller-style condenser fan assemblies. Licensed HVAC technicians are the primary installers for this motor type.

This motor is suited for replacement applications in residential split-system air conditioners and heat pumps where the original condenser fan motor has failed or degraded. Its RPM range of 925-1200 RPM and single-speed configuration make it a straightforward fit for standard condensing unit fan decks. The TEAO enclosure rating means the motor tolerates airborne debris and moisture exposure inherent in outdoor condenser service without requiring additional weatherproofing. Continuous-duty rating confirms the motor is built for the long run cycles expected during peak cooling demand.

Key Features

• 1/3 HP PSC motor with 1075 RPM operating speed and 925-1200 RPM usable range
• TEAO enclosure rated for outdoor condenser airstream exposure
• Ball bearing construction for extended service life under continuous load
• Reverse rotation configured for standard propeller condenser fan assemblies
• Automatic thermal protection for overload shutdown and self-reset
• Single-phase, single-speed design simplifies wiring and replacement

Compatibility

Designed as an OEM-style replacement condenser fan motor for single-phase residential and light commercial air conditioning condensing units requiring a 1/3 HP, 208-230 volt, 1075 RPM TEAO motor with reverse rotation.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the condensing unit before removing the existing motor. Verify shaft diameter, mounting configuration, and blade pitch match the replacement motor before final assembly. Confirm capacitor sizing with the motor nameplate before energizing, as an incorrect run capacitor can reduce performance or cause premature motor failure.

Technical Specifications

• Horsepower: 1/3 HP
• Voltage: 208-230 volts
• Speed: 1075 RPM
• RPM Range: 925-1200 RPM
• Phase: Single
• Motor Type: PSC
• Number of Poles: 6
• Enclosure: TEAO
• Bearing Type: Ball
• Rotation: Reverse
• Duty: Continuous
• Thermal Protection: Auto
• Service Factor: 1.0
• Speeds: 1

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M10734
