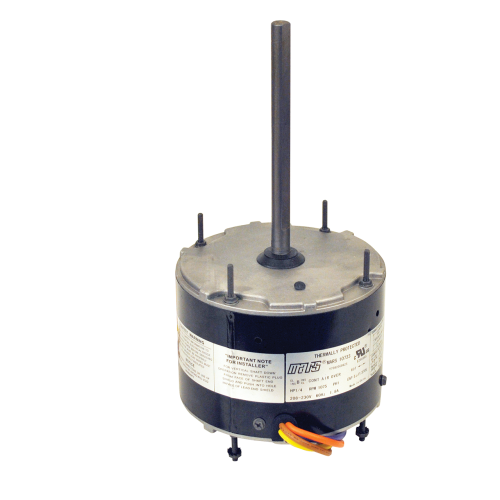

Rectorseal M10733 Condenser Fan Motor 1/4 Hp 208-230V

Product Description

The RECTORSEAL M10733 is a PSC condenser fan motor rated at 1/4 HP and designed for continuous-duty outdoor operation. Running at 1075 RPM on a single-phase, 208-230 volt supply, this motor carries a TEAO (Totally Enclosed Air Over) enclosure rating, making it well suited for the harsh outdoor conditions typical of condenser section service. Ball bearings support the shaft for long service life with minimal maintenance. Reverse rotation is standard, matching the airflow requirements of most condenser fan assemblies. Licensed HVAC technicians are the primary installers for this type of motor.

This motor is intended for residential and light commercial air conditioning condenser units where a 1/4 HP, 6-pole, single-phase PSC motor is specified. The RPM range of 925 to 1200 provides flexibility across a range of condenser fan blade pitches and airflow configurations. Automatic thermal protection shuts the motor down if operating temperatures exceed safe limits, helping prevent winding damage during high-ambient or restricted-airflow conditions. It is a direct replacement candidate for failed or worn OEM condenser fan motors matching these electrical and mechanical specifications.

Key Features

• 1/4 HP continuous-duty PSC motor rated for 208-230 volt single-phase power
• TEAO enclosure rated for outdoor condenser section installation
• Ball bearing construction for extended service life
• Reverse rotation standard for condenser fan airflow direction
• Automatic thermal protection guards against overheating
• Operating RPM range of 925 to 1200 for flexible fan blade compatibility

Compatibility

Designed as an OEM-style replacement condenser fan motor for residential and light commercial air conditioning systems requiring a 1/4 HP, 208-230 volt, 1075 RPM, single-phase PSC motor with reverse rotation and a TEAO enclosure.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the condensing unit before removing the existing motor or handling wiring. Confirm blade pitch, shaft diameter, shaft length, and mounting configuration match the replacement motor before installation. Follow NEC guidelines for electrical connections and verify rotation direction before returning the system to service.

Technical Specifications

• Horsepower: 1/4 HP
• Motor Type: PSC
• Phase: Single
• RPM: 1075
• RPM Range: 925-1200
• Number of Poles: 6
• Enclosure: TEAO
• Bearing Type: Ball
• Rotation: Reverse
• Duty: Continuous
• Thermal Protection: Automatic

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M10733
