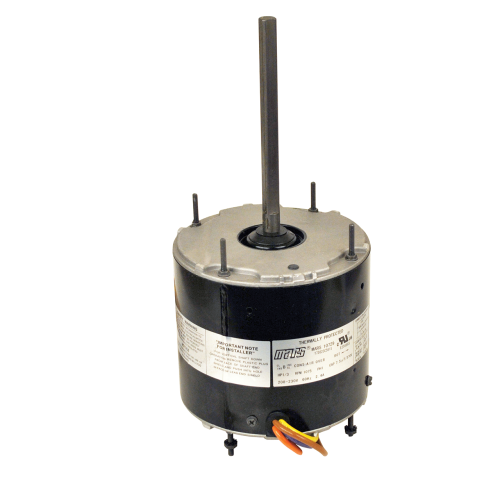

Rectorseal m10727 Condenser Motor 1/6 Hp 208-230V

Product Description

The RECTORSEAL m10727 is a condenser fan motor rated at 1/6 horsepower and designed for operation at 208-230 volts. Running at 1075 RPM, this motor is built for condenser section duty in residential and light commercial air conditioning equipment. Licensed HVAC technicians install this motor as a direct replacement when the original condenser fan motor has failed, restoring proper airflow across the condenser coil and maintaining system efficiency. Its voltage range accommodates both 208-volt and 230-volt supply circuits commonly found in single-phase residential installations.

This motor is suited for outdoor condenser unit applications where a 1/6 HP, 1075 RPM motor is specified. It fits into typical single-phase condenser fan assemblies and is installed during seasonal maintenance calls, motor replacements, or equipment restoration projects. HVAC service technicians working on split-system air conditioners and heat pumps are the primary installers of this component.

Key Features

• 1/6 HP output rated for condenser fan duty
• 208-230 volt operating range covers common single-phase residential supply voltages
• 1075 RPM speed standard for condenser section airflow applications
• Direct OEM-style replacement reduces downtime on service calls

Compatibility

Designed as an OEM-style replacement condenser fan motor for residential and light commercial split-system air conditioning and heat pump equipment requiring a 1/6 HP, 208-230 volt, 1075 RPM motor.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the condensing unit before removing the existing motor. Verify that the replacement motor rotation direction, shaft size, and mounting configuration match the original before completing the installation. Follow all applicable local codes and manufacturer wiring diagrams when reconnecting electrical connections.

Technical Specifications

• Horsepower: 1/6 HP
• Voltage: 208-230 volts
• Speed: 1075 RPM
• Application: Condenser Fan Motor

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: m10727
