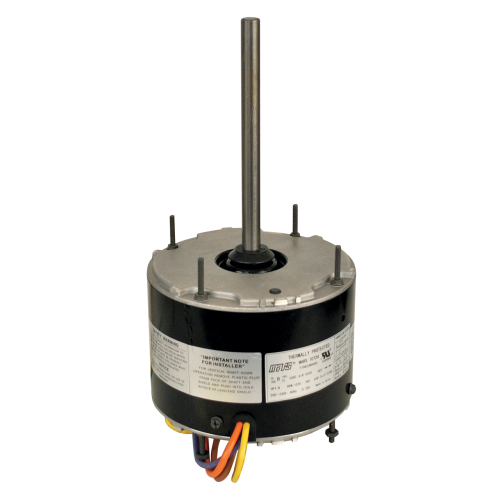

Rectorseal M10725 Condenser Fan Motor 1/8 Hp 1075 Rpm

Product Description

The RECTORSEAL M10725 is a single-phase PSC condenser fan motor rated at 1/8 HP and 1075 RPM, designed for continuous-duty operation in residential and light commercial HVAC condensing units. Built with a TEAO (Totally Enclosed Air Over) enclosure, this motor is intended for direct exposure to airflow across the condenser coil, offering durability in outdoor conditions. The reverse rotation direction is standard for condenser fan applications. Automatic thermal protection guards against overheating during extended run cycles.

This motor is suited for condenser fan applications in split-system air conditioners and heat pumps where a 208-230 volt single-phase PSC motor is specified. The 1075 RPM base speed with an operational range of 925 to 1200 RPM gives it flexibility across a range of OEM replacement scenarios. It is typically installed by licensed HVAC technicians as a direct replacement for failed or underperforming condenser fan motors in rooftop and ground-mounted condensing units.

Key Features

• 1/8 HP continuous-duty PSC motor rated for condenser fan service
• TEAO enclosure rated for direct airflow exposure in outdoor condensing units
• Reverse rotation configuration standard for condenser fan blade orientation
• Automatic thermal protection prevents damage from overheating
• Ball bearing construction for long service life in continuous-duty cycles
• RPM range of 925 to 1200 supports broad OEM replacement fitment

Compatibility

Designed as an OEM-style replacement condenser fan motor for 208-230 volt single-phase residential and light commercial air conditioning and heat pump condensing units requiring a 1/8 HP PSC motor.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the condensing unit before removing the existing motor or capacitor. Verify the replacement motor rotation direction and shaft orientation match the existing fan blade assembly before mounting. Consult local codes and the equipment manufacturer service documentation for wiring and capacitor sizing requirements.

Technical Specifications

• Horsepower: 1/8 HP
• Voltage: 208-230 volts
• RPM: 1075
• RPM Range: 925-1200
• Phase: Single
• Motor Type: PSC
• Number of Poles: 6
• Speeds: 1
• Rotation: Reverse
• Enclosure: TEAO
• Bearing Type: Ball
• Duty: Continuous
• Thermal Protection: Automatic
• Service Factor: 1.0

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M10725
