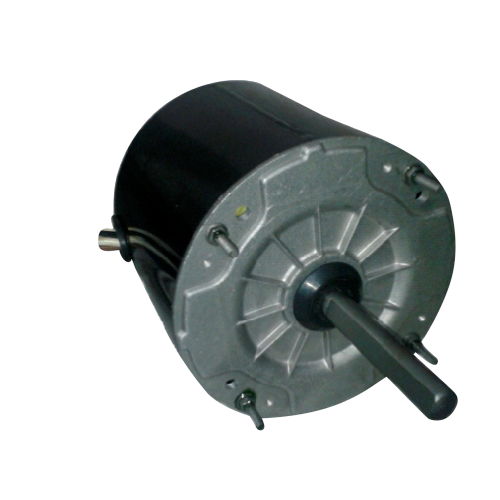

Rectorseal M10723 Multi-speed Motor 1/6-1/4 Hp 1075 Rpm

Product Description

The RECTORSEAL M10723 is a multi-horsepower PSC-type motor rated from 1/6 to 1/4 HP at 1075 RPM with a 42 frame configuration. This type of motor is a common replacement component in residential and light-commercial HVAC equipment, designed to drive evaporator blower wheels or condenser fan assemblies. HVAC technicians select multi-HP motors to consolidate stock, allowing a single unit to cover a range of horsepower requirements across multiple applications. The 1075 RPM operating speed is standard for low-static airside applications found in split-system air handlers, furnace blowers, and package units.

This motor is suited for residential and light-commercial forced-air systems where a 42 frame, 1075 RPM motor is specified. Its multi-horsepower rating makes it practical for service technicians who need a stocked replacement that can stand in for several single-rated OEM motors. Typical install scenarios include blower motor replacement in gas furnaces, air handlers, and fan-coil units. The 42 frame designation is an industry-standard frame size that aligns with a wide range of common blower housings and mounting brackets found in residential HVAC equipment.

Key Features

• Multi-HP rating spanning 1/6 to 1/4 HP reduces the number of individual SKUs a tech needs to stock
• 1075 RPM operating speed matched to standard residential blower and fan applications
• 42 frame configuration fits a wide range of industry-standard motor mounts and blower housings
• Designed as a direct OEM-style replacement to simplify field service calls

Compatibility

Designed as an OEM-style replacement motor for residential and light-commercial HVAC equipment requiring a 42 frame, 1075 RPM motor in the 1/6 to 1/4 HP range.

Installation Notes

Motor replacement should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the unit before removing the existing motor. Verify that the replacement motor frame, rotation direction, shaft size, and horsepower setting match the original equipment specifications before energizing. Consult local electrical codes and the equipment manufacturer wiring diagram when making connections.

Technical Specifications

• Horsepower Range: 1/6 to 1/4 HP
• Speed: 1075 RPM
• Frame: 42

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M10723
