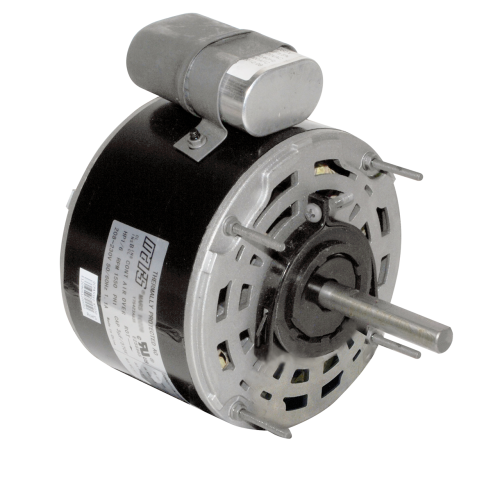

Rectorseal M10265 Psc Blower Motor 1/6 Hp 1550 Rpm

Product Description

The RECTORSEAL M10265 is a permanent split capacitor (PSC) blower motor rated at 1/6 horsepower and designed for continuous-duty operation in forced-air HVAC applications. It runs on 208-230 volt single-phase power at 1550 RPM with a clockwise (CW) shaft rotation. The motor uses sleeve bearings and includes automatic thermal protection, which cuts power if the motor overheats and resets once it cools. With a service factor of 1.0 and a 4-pole, single-speed configuration, this motor is suited for residential and light commercial air handler and furnace blower assemblies where reliable, steady airflow is required.

This motor is appropriate for single-phase blower applications in residential HVAC systems, including gas furnaces and air handler units that require a PSC-type replacement motor. The RPM range of 1350 to 1900 provides some flexibility in matched-system applications. It is installed by licensed HVAC technicians as a direct replacement in open air-over (OAO) enclosure environments where the motor is cooled by the airstream passing through the blower cabinet.

Key Features

• PSC motor type for reliable single-phase blower duty
• 1/6 HP output with continuous-duty rating
• 1550 RPM nominal speed with an operating range of 1350 to 1900 RPM
• Clockwise shaft rotation for direct blower wheel compatibility
• Automatic thermal protection resets after cooldown to guard against overheating
• Open air-over (OAO) enclosure cooled by system airflow

Compatibility

Designed as an OEM-style replacement PSC blower motor for single-phase residential and light commercial forced-air HVAC systems requiring a 1/6 HP, 208-230 volt, CW-rotation motor.

Installation Notes

Installation should be performed by a qualified HVAC technician. Disconnect and lock out all electrical power to the air handler or furnace before removing the existing motor. Verify shaft rotation direction, shaft diameter, and mounting configuration match the original motor before installation. Confirm capacitor ratings are compatible with this PSC motor, as an incorrectly sized run capacitor will affect performance and motor life.

Technical Specifications

• Motor Type: PSC (Permanent Split Capacitor)
• Horsepower: 1/6 HP
• Voltage: 208-230 volts
• RPM: 1550
• RPM Range: 1350-1900
• Rotation: Clockwise (CW)
• Phase: Single
• Number of Poles: 4
• Speeds: 1
• Duty: Continuous
• Enclosure: OAO (Open Air-Over)
• Bearing Type: Sleeve
• Thermal Protection: Automatic
• Service Factor: 1.0

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M10265
