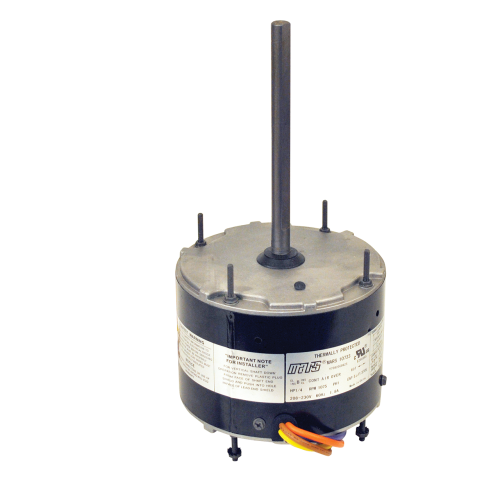

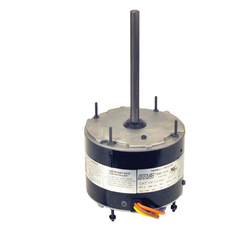

Rectorseal M10205 Condenser Fan Motor 1/3 Hp 825 Rpm

Product Description

The RECTORSEAL M10205 is a single-phase PSC condenser fan motor rated at 1/3 horsepower and 825 RPM, designed for outdoor condensing unit applications in residential and light commercial HVAC systems. Built with a totally enclosed air-over (TEAO) enclosure and ball bearings, it handles continuous-duty operation in exposed outdoor environments where moisture and debris are constant factors. The motor runs on 208-230 volts and ships set to reverse rotation, which is standard for condenser fan applications where air is drawn up through the coil. Thermal protection is included, adding a layer of defense against overload conditions in the field.

This motor is suited for replacement installations on rooftop and ground-level condensing units in residential split systems and packaged equipment. HVAC technicians typically encounter this motor class when a failed condenser fan motor is causing high-head pressure trips or compressor overloads. The 700-900 RPM operating range and 8-pole configuration make it appropriate for low-speed condenser fan duty. It is installed by licensed HVAC technicians as part of routine refrigeration-side motor replacement service.

Key Features

• 1/3 HP continuous-duty rating suitable for condenser fan applications
• TEAO enclosure protects internal windings in outdoor, air-over environments
• Ball bearing construction supports long service life under sustained operation
• Reverse rotation factory configuration matches standard condenser fan draw-through airflow
• Integrated thermal protection guards against overload and winding damage
• 825 RPM nominal speed with a 700-900 RPM operating range for application flexibility

Compatibility

Designed as an OEM-style replacement condenser fan motor for single-phase residential and light commercial air conditioning condensing units requiring a 1/3 HP, 825 RPM, 208-230 volt PSC motor with TEAO enclosure and reverse rotation.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the condensing unit before removing the existing motor or any electrical connections. Verify rotation direction, shaft size, and mounting configuration match the application before completing the installation. Refer to the equipment manufacturer wiring diagram and local codes when making electrical terminations.

Technical Specifications

• Horsepower: 1/3 HP
• Voltage: 208-230 volts
• RPM: 825
• RPM Range: 700-900
• Motor Type: PSC
• Phase: Single
• Number of Poles: 8
• Rotation: Reverse
• Enclosure: TEAO
• Bearing Type: Ball
• Duty: Continuous
• Speeds: 1
• Service Factor: 1.0
• Thermal Protection: Yes

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M10205
