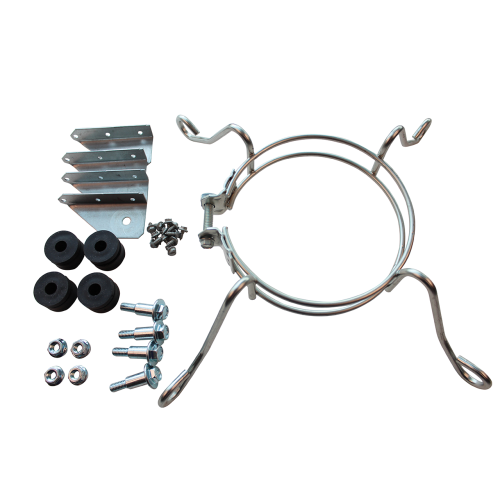

Rectorseal M08028 48 Frame Belly Band Motor Mount

Product Description

The RECTORSEAL M08028 is a 48-frame belly band motor mount designed to secure and position motors in HVAC applications where standard foot or bracket mounting is not practical. Belly band mounts wrap around the motor body and clamp it in place, allowing flexible positioning and secure installation without requiring a dedicated motor foot. This mount is compatible with 5.5-inch diameter motors, which is the standard frame dimension for 48-frame motors commonly found in condenser fans, evaporator blowers, and similar HVAC equipment. Installation is typically performed by licensed HVAC technicians as part of a motor replacement or system repair.

The M08028 is suited for residential and light commercial HVAC systems where 48-frame motors are used. Typical applications include condenser fan motor replacements, blower motor repositioning, and retrofit installations where the original motor mounting configuration needs to be adapted. The belly band design accommodates the 5.5-inch motor frame diameter associated with the 48-frame motor standard, making it a practical hardware solution during motor changeouts on a variety of forced-air and refrigeration systems.

Key Features

• Designed for 48-frame motors with a 5.5-inch body diameter
• Belly band mounting style allows flexible motor positioning and orientation
• Provides secure motor retention without requiring foot-mount hardware
• Suitable for condenser fan and blower motor applications in HVAC systems
• Compatible with Rheem 48-frame motor configurations per product designation

Compatibility

Designed for use with 5.5-inch diameter 48-frame motors, including Rheem 48-frame motor applications as indicated by the product designation.

Installation Notes

Installation should be performed by a qualified HVAC technician. Disconnect and lock out all electrical power to the unit before removing or installing any motor or mounting hardware. Ensure the belly band is positioned at the correct point on the motor body and tightened evenly to prevent motor vibration or movement during operation. Verify that the installed motor orientation meets manufacturer requirements for the specific unit being serviced.

Technical Specifications

• Frame Size: 48 frame
• Compatible Motor Diameter: 5.5 inches
• Mount Type: Belly band

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M08028
