Rectorseal M08026 Belly Band Motor Mount 11 in Bolt Pattern

Product Description

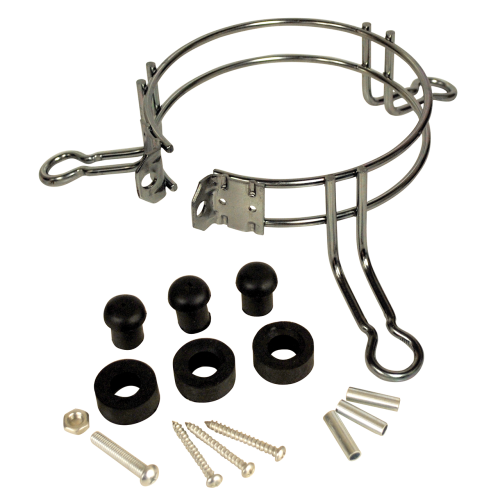

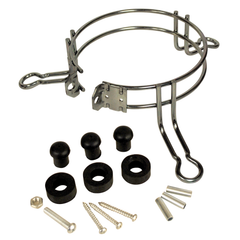

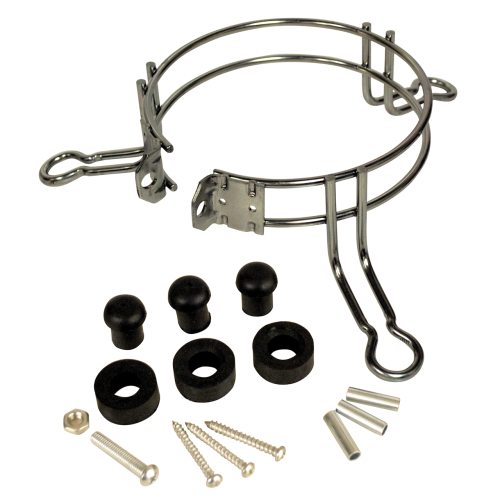

The RECTORSEAL M08026 is a belly band motor mount designed to secure replacement condenser fan and blower motors in HVAC applications where direct-mount hardware is unavailable or incompatible. The M08026 features an 11-inch bolt pattern, making it compatible with 5.5-inch frame motors. This style of mount wraps around the motor body and fastens with hardware to a mounting bracket or bulkhead, providing a stable, vibration-resistant installation. HVAC technicians use belly bands as a practical solution when swapping motors that do not share the original mounting footprint.

This belly band is used in residential and light commercial HVAC service work, primarily for condenser fan motor replacements where the OEM mounting configuration cannot be reused. It is suited for situations where a universal or cross-brand motor replacement is being installed and a secure, adjustable band mount is needed to complete the swap. The 11-inch bolt pattern accommodates 5.5-inch diameter motors, keeping the install straightforward for field technicians.

Key Features

• 11-inch bolt pattern sized for 5.5-inch frame motors
• Belly band style mount wraps the motor body for a secure grip
• Designed for use where original mounting hardware is not compatible
• Supports universal motor replacement scenarios in HVAC service work

Compatibility

Designed for use with 5.5-inch motors. For additional compatibility, consult the RECTORSEAL product documentation or verify the motor frame diameter and bolt pattern before ordering.

Installation Notes

Installation is performed by licensed HVAC technicians. Disconnect and lock out all electrical power to the unit before removing the existing motor or mounting hardware. Position the belly band around the motor body and align the bolt pattern with the mounting bracket before tightening fasteners evenly to prevent motor misalignment. Verify that the motor shaft orientation and rotation direction are correct before restoring power.

Technical Specifications

• Bolt Pattern: 11 inches
• Compatible Motor Size: 5.5 inches

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M08026
