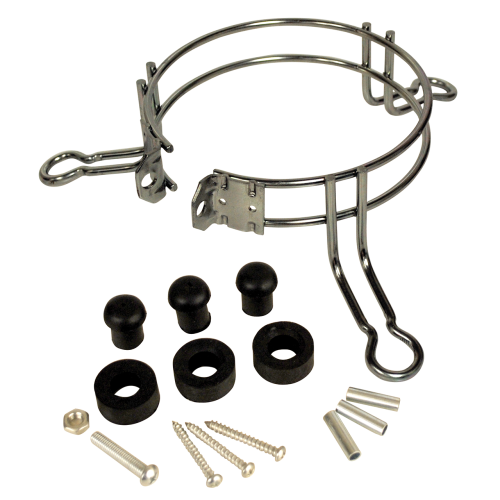

Rectorseal M08025 Belly Band Motor Mount 10 in

Product Description

The RECTORSEAL M08025 is a belly band motor mount designed to secure replacement condenser fan and blower motors in HVAC applications where standard foot or stud mounting is not practical. The M08025 features a 10 inch bolt pattern and is sized to fit 5.5 inch diameter motors. This style of mount wraps around the motor body and clamps it in place, allowing technicians to position and align the motor without requiring OEM bracket hardware. It is a common solution during motor replacements on residential and light commercial rooftop and condenser units.

Belly band mounts are used when a replacement motor has a different mounting configuration than the original, or when the existing bracket is damaged or unavailable. The M08025 is suited for field installation on condenser fan motors and evaporator blower motors that measure 5.5 inches in diameter. HVAC technicians rely on this type of mount to complete motor changeouts cleanly without fabricating custom brackets or sourcing hard-to-find OEM hardware.

Key Features

• 10 inch bolt pattern accommodates standard motor mounting footprints
• Designed for use with 5.5 inch diameter motors
• Belly band style secures motor without OEM bracket hardware
• Useful for retrofit and replacement installations where original mount is unavailable
• Compatible with common condenser fan and blower motor diameters found in residential and light commercial HVAC systems

Compatibility

Designed for use with 5.5 inch diameter motors. Suitable as an OEM-style replacement or retrofit motor mounting solution in residential and light commercial HVAC systems.

Installation Notes

Installation is typically performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the unit before removing or installing any motor or mounting hardware. Ensure the band is fully seated and fasteners are evenly tightened to prevent motor vibration or shifting during operation. Verify motor shaft orientation and rotation direction before restoring power.

Technical Specifications

• Bolt Pattern: 10 inches
• Compatible Motor Diameter: 5.5 inches

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M08025
