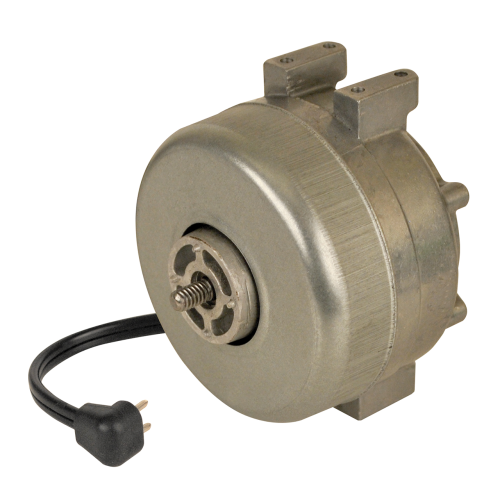

Rectorseal M05213 Unit Bearing Motor 4W 115V 1550 Rpm

Product Description

The RECTORSEAL M05213 is a single-phase shaded pole unit bearing motor rated at 4 watts maximum and 1550 RPM, designed for continuous-duty fan and blower applications in HVAC and refrigeration equipment. Built with a totally enclosed fan-cooled (TEFC) enclosure and aluminum construction, it delivers reliable airflow in compact equipment where durability and consistent output are required. Thermal protection is provided by impedance, eliminating the need for external overload devices. Clockwise rotation and a single-speed configuration make this a straightforward drop-in solution for qualified HVAC technicians handling light-duty motor replacements.

This motor is suited for residential and light commercial HVAC and refrigeration applications, including evaporator fan assemblies, condenser fan units, and small blower systems that require a compact unit bearing design. Its single-phase power input at 115 volts and an RPM operating range of 1350 to 1900 accommodates minor speed variation inherent to shaded pole motor loads. Technicians installing evaporator or display case fan motors in refrigeration equipment will find this motor fits standard light-duty continuous-duty service requirements.

Key Features

• 4-watt maximum output for light-duty continuous fan and blower service
• TEFC enclosure protects internal windings in humid or dusty environments
• Shaded pole, single-phase design for simple, brushless operation
• Impedance thermal protection built in — no external overload required
• Clockwise rotation, single speed for direct replacement applications
• Aluminum construction reduces overall motor weight

Compatibility

Designed as an OEM-style replacement for single-phase shaded pole unit bearing motors used in light-duty continuous-duty HVAC and refrigeration fan assemblies operating at 115 volts.

Installation Notes

Installation should be performed by a licensed HVAC or refrigeration technician. Disconnect and lock out all power to the equipment before removing the existing motor. Confirm rotation direction and voltage rating match the application before energizing. Refer to the equipment manufacturer wiring diagram and applicable NEC requirements when making electrical connections.

Technical Specifications

• Motor Type: Shaded Pole
• Bearing Type: Unit
• Duty: Continuous
• Wattage (Max.): 4 watts
• Phase: Single
• RPM: 1550
• RPM Range: 1350-1900
• Rotation: Clockwise (CW)
• Speeds: 1
• Enclosure: TEFC
• Thermal Protection: Impedance
• Material: Aluminum

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M05213
