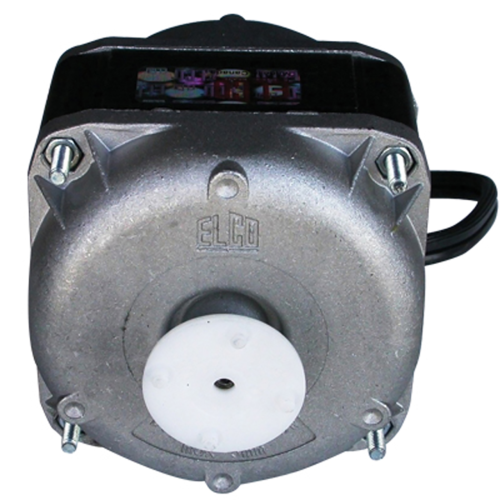

Rectorseal M00809 Unit Bearing Motor 18W 1550 Rpm

Product Description

The RECTORSEAL M00809 is a single-speed unit bearing motor rated at 18 watts and 1550 RPM, designed for continuous-duty HVAC applications. It operates on 115 volts single-phase power and uses a shaded pole design with sleeve bearings. The motor is built to a Totally Enclosed Air Over (TEAO) enclosure standard, making it suitable for direct airstream exposure. Rotation is counter-clockwise when viewed from the shaft end (CCW SE). This type of motor is commonly installed by HVAC technicians in residential and light commercial fan and blower assemblies where compact, reliable continuous-duty operation is required.

Unit bearing motors of this type are used in evaporator fan assemblies, condenser fan applications, and small blower units where low wattage and consistent airflow are priorities. The M00809 operates within an RPM range of 1350 to 1900, providing some tolerance across varying load conditions. Thermal protection is built in, adding a layer of overtemperature safeguarding. This motor suits single-phase residential and light commercial HVAC equipment requiring a compact shaded pole motor with a TEAO enclosure.

Key Features

• 18-watt maximum output for low-energy continuous-duty fan applications
• TEAO enclosure rated for direct airstream installation
• Built-in thermal protection against overtemperature conditions
• CCW SE rotation for drop-in replacement compatibility
• Operating RPM range of 1350 to 1900 at a nominal 1550 RPM
• 4-pole shaded pole design on single-phase 115-volt power

Compatibility

Designed as an OEM-style replacement for residential and light commercial HVAC fan and blower motors requiring a single-speed, 18-watt, 115-volt shaded pole unit bearing motor with a TEAO enclosure and CCW SE rotation.

Installation Notes

Installation of this motor should be performed by a qualified HVAC technician. Disconnect and lock out all power to the unit before removing the existing motor or making any wiring connections. Verify that supply voltage and rotation direction match the application requirements before energizing. Confirm that the replacement motor mounting dimensions and shaft specifications match the original equipment before installation.

Technical Specifications

• Wattage (Max.): 18 watts
• Voltage: 115 volts
• Phase: Single
• RPM (Nominal): 1550
• RPM Range: 1350 to 1900
• Motor Type: Shaded Pole
• Number of Poles: 4
• Speeds: 1
• Rotation: CCW SE
• Enclosure: TEAO
• Bearing Type: Sleeve
• Duty: Continuous
• Thermal Protection: Yes

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M00809
