Rectorseal K672 Fasco C-Frame Motor 1/50 HP 240V 3000 RPM

Product Description

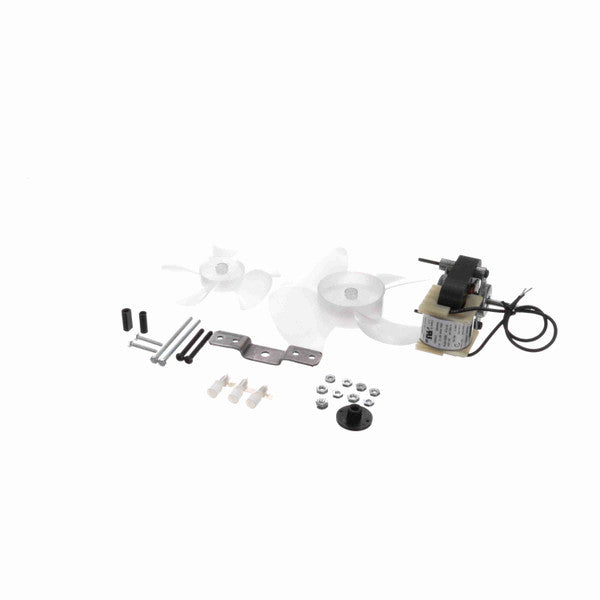

The RECTORSEAL K672 Fasco C-Frame Motor is a 1/50 HP, 240V motor operating at 3000 RPM. Designed for heating, refrigeration, and ventilation applications, it features thermal protection and Class B insulation. The motor includes a sleeve bearing and extended studs for mounting.

• Heating - Refrigeration - Ventilating Motor
• Thermally Protected, One-Shot Fuse
• Extended Studs Opposite Shaft End

Product Highlights

Ideal for HVAC applications, this motor offers reliable performance with its shaded pole design and open air over feature.

Product Information

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: K672

Technical Specifications

• UPC: 818508021744
• Output HP: 1/50 Hp
• Output KW: 0.01 kW
• Frequency: 60 Hz
• Voltage: 240 V
• Current: .29 A
• Speed: 3000 rpm
• Service Factor: 1
• Phase: 1
• Duty: Air Over
• Insulation Class: B
• Frame: C-FRAME
• Enclosure: Open Enclosed
• Thermal Protection: Thermally Protected
• Ambient Temperature: 40 0C
• UL: Recognized
• CSA: N
• CE: N
• Number of Speeds: 1
• Electrical Type: Shaded Pole
• Starting Method: Across The Line
• Poles: 2
• Rotation: Counterclockwise Shaft End
• Mounting: Extended Studs
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Shaft Type: Round
• Overall Length: 3.69 in
• Shaft Diameter: 0.188 in
• Shaft Extension: 1.30 in
