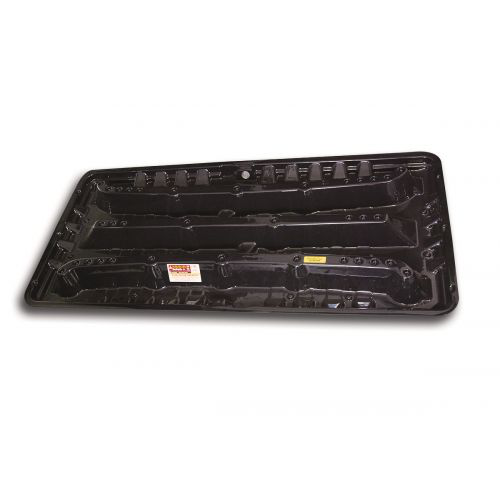

Rectorseal G 30X60 Goliath Furnace Drain Pan 30x60

Product Description

The RECTORSEAL G 30X60 is a large-format condensate drain pan designed for use under furnaces, air handlers, and comparable HVAC equipment where moisture management is required. Measuring 30 inches wide by 60 inches long, it provides broad coverage for both primary and secondary drain applications. The pan is constructed of coated steel for corrosion resistance in the persistently damp conditions found in mechanical rooms and utility spaces. Integrated drain connection provisions allow secure attachment of condensate lines, supporting code-compliant drainage routing. Licensed HVAC technicians install this pan as part of standard equipment protection and condensate management setups.

The G 30X60 is suited for residential and light commercial installations where equipment footprints require extended pan coverage. Typical applications include under-unit placement beneath gas or electric furnaces, horizontal air handlers, and other HVAC equipment positioned in attics, mechanical closets, and crawlspace installations where secondary containment is required or mandated by local mechanical codes. Its 30-inch by 60-inch footprint accommodates larger equipment bases that standard-size pans cannot cover.

Key Features

• Large 30-inch by 60-inch footprint for extended equipment coverage
• Coated steel construction resists corrosion in high-moisture environments
• Integrated drain connection provisions for secure condensate line attachment
• Supports both primary and secondary drain configurations
• Suitable for residential and light commercial HVAC applications

Compatibility

Designed as an OEM-style replacement and new-installation drain pan for residential and light commercial furnaces and air handlers requiring a 30-inch by 60-inch condensate containment footprint.

Installation Notes

Installation is performed by licensed HVAC technicians. Shut down and de-energize all associated HVAC equipment before positioning or connecting the drain pan. Ensure condensate lines are properly sloped to the drain outlet and secured to prevent leaks. Local mechanical codes, including applicable provisions of the IMC and IRC, may specify required pan dimensions, drain sizing, and secondary overflow provisions — consult the authority having jurisdiction before finalizing the installation.

Technical Specifications

• Width: 30 inches
• Length: 60 inches
• Material: Coated Steel
• Application: Condensate drain pan for furnaces and air handlers

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: G 30X60
