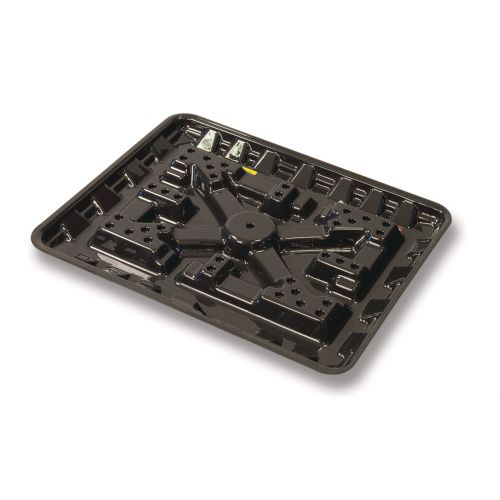

Rectorseal G 30X36 Furnace Drain Pan 30x36 in

Product Description

The RECTORSEAL G 30X36 is a Goliath-series condensate drain pan engineered for installation beneath furnaces, air handlers, and other indoor HVAC equipment. The pan measures 30 inches wide by 36 inches long, providing a broad collection area to capture and control condensate discharge. Constructed of coated steel for corrosion resistance in continuously moist service conditions, it is built to hold up in the demanding environments typical of mechanical rooms and utility spaces. Licensed HVAC technicians install this pan in both primary and secondary drain locations to protect structures from water damage caused by condensate overflow.

This drain pan is suited for residential and light-commercial HVAC installations where equipment footprint requires a larger-format pan. Typical applications include installation under high-efficiency gas furnaces, split-system air handlers, and fan coil units in attic, crawlspace, basement, or closet mechanical spaces. The 30-inch by 36-inch footprint accommodates a wide range of equipment cabinet sizes common in these settings. The pan supports condensate line attachment to route collected water to an approved drain point per local mechanical code requirements.

Key Features

• 30 inches x 36 inches collection area accommodates larger HVAC equipment cabinets
• Coated steel construction resists corrosion in continuously moist service environments
• Provisions for condensate line attachment support primary and secondary drain configurations
• Stable base design keeps pan positioned securely under equipment during service
• Suitable for attic, basement, crawlspace, and closet mechanical installations

Compatibility

Designed as an OEM-style replacement and new-installation drain pan for residential and light-commercial furnaces, air handlers, and fan coil units requiring a 30-inch by 36-inch pan footprint.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with local mechanical codes and the equipment manufacturer guidelines. Power down the HVAC system and shut off the condensate pump, if present, before positioning the pan under the unit. Ensure the pan is level so condensate drains correctly toward the outlet fitting and does not pool at unintended low points. Connect the condensate drain line to an approved drain location per applicable mechanical code requirements.

Technical Specifications

• Width: 30 inches
• Length: 36 inches
• Material: Coated Steel

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: G 30X36
