Rectorseal FG1-20X25 Filter Grille 1 inches 20X25 REPLACEMENT FG120X25

Product Description

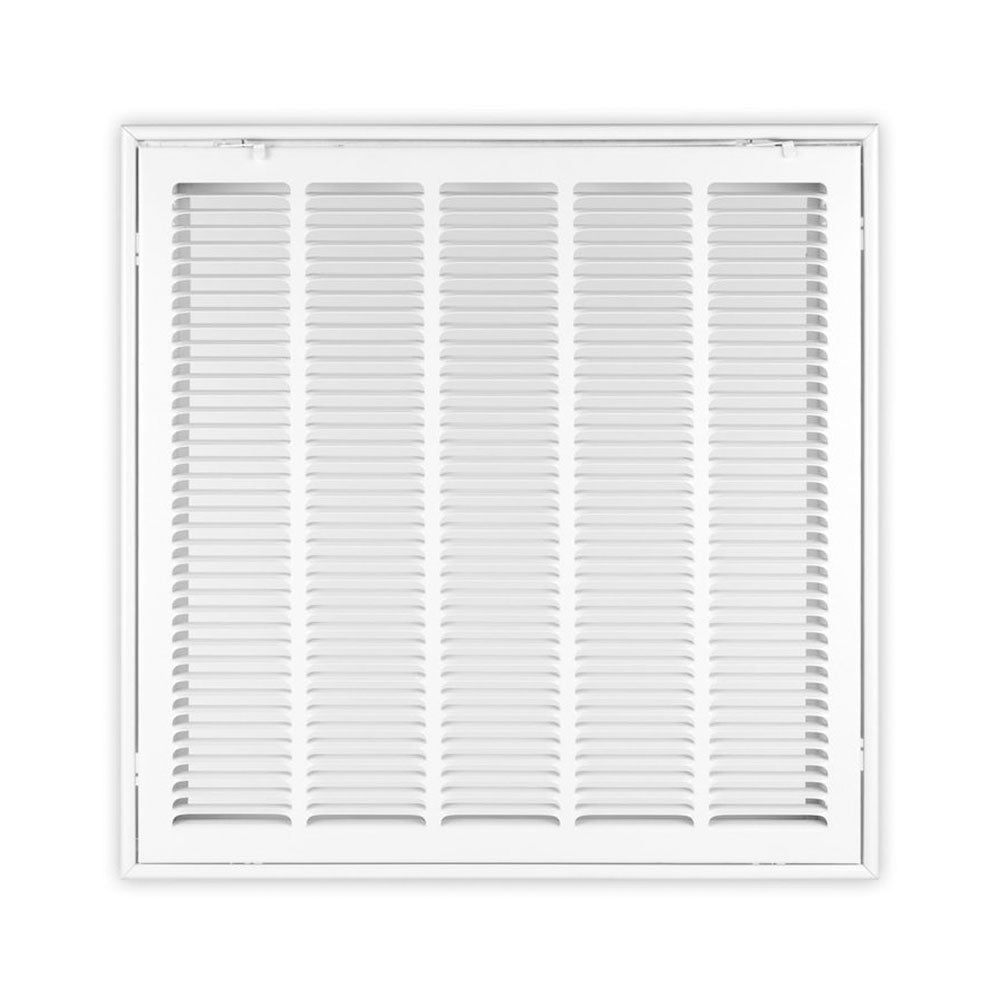

The RECTORSEAL FG1-20X25 filter grille features a stamped face and fixed blades with hinges parallel to the longest side. Designed for filtered air return in ceiling or sidewall applications, it accommodates a 1" filter. The steel frame and stamped steel louver blades ensure durability. It is equivalent to FG120X25.

• Features 1/2" spacing dual angular louvers for strength and maximum free area
• Equipped with a hinged removable face and hand-operated lever for easy filter access
• Designed with concealed mounting holes and includes mounting screws

Product Highlights

This filter grille is ideal for residential applications, providing efficient air filtration and easy maintenance.

Product Information

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: FG1-20X25

Technical Specifications

• Manufacturer: CSW Industrials Inc
• Brand: RectorSeal
• MPN: FG1-20X25
• Main brand: Rectorseal
• Main function: Grille
• Product line / product family name: HVAC > Grilles / Registers / Diffusers (GRD) > Air return
• Sub-range name: FG series
• Functions: Filter grille
• Design type: stamped face, fixed blades, hinges parallel to longest side, filtered air return function, for ceiling / sidewall applications, for 1" filter, for residential applications, horizontal blade (parallel to the width)
• Mounting type: Surface mounting
• Dimensions: H25" x W20" nominal frame size, H635mm x W508mm nominal frame size, 1/2" (12.7mm) blade spacing, 1-3/8" (34.9mm) installation depth
• Material: Steel frame, Stamped steel louver blades
• Manufacturer product reference: FG1-20X25
• Manufacturer product status: Commercialized
