Rectorseal FG1-20X20 FG Series 4-Way Filter Grille - 20 x 20 in replacement FG120X20

Product Description

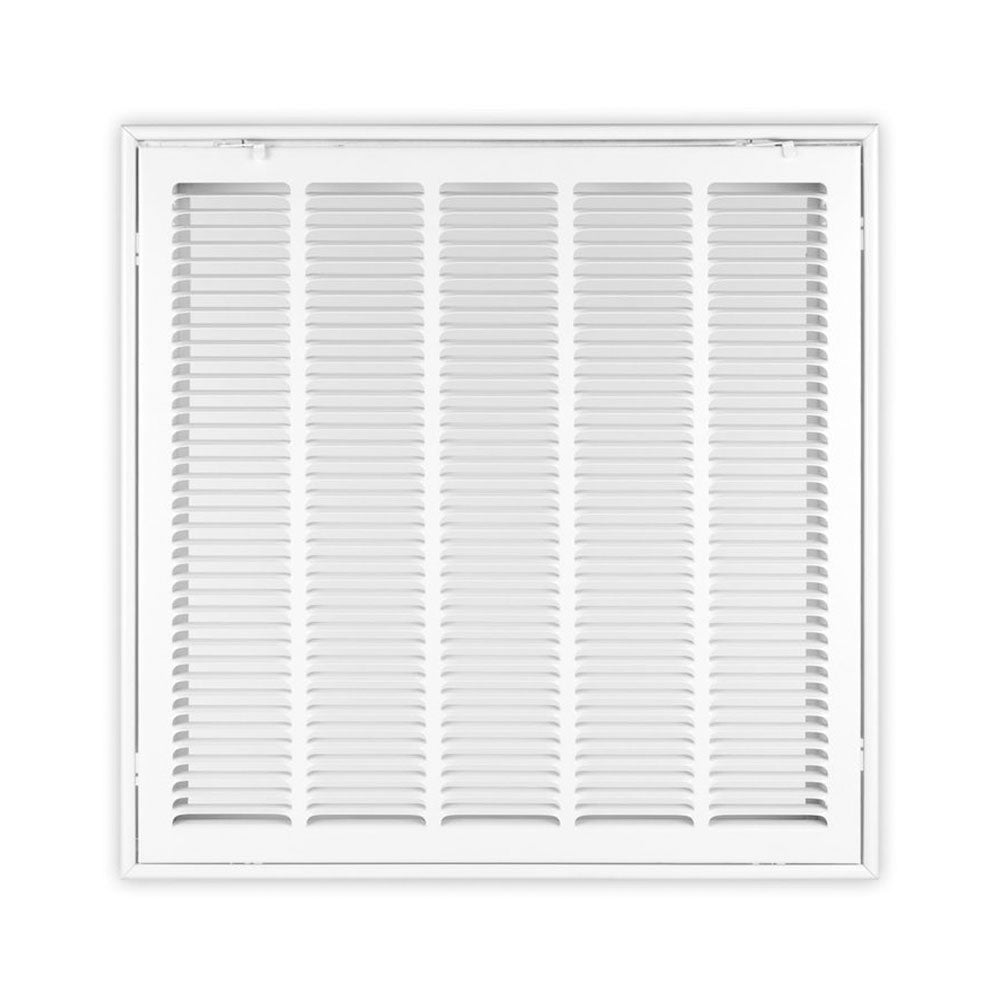

The RectorSeal FG1-20X20 FG Series Stamped Face Filter Grille offers a durable solution for return air applications requiring filtration. Constructed from steel with a roll-formed frame, it is designed for reliability and easy maintenance in wall-mounted installations. The grille features a stamped face, fixed blades, and hinges parallel to the longest side.

• Durable steel construction
• Roll-formed frame
• Easy maintenance
• Rust-resistant

Product Highlights

This filter grille has 1/2" spacing dual angular louvers for strength and maximum free area. It holds up to a 1" filter (not included) with filter retention tabs.

Product Information

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: FG1-20X20

Technical Specifications

• CFM Airflow: 53-2,826 CFM
• Color: Soft white
• Deflection Type: 4-Way
• Depth: 1.375 in
• Duct Shape: Square
• Face Type: Stamped Face
• Fin Spacing: 0.5 in
• Finish: Powder Coated
• For Duct Size: 20 x 20 in
• Height: 22.75 in
• Installation / Mounting Type: Wall Mount
• Material: Steel frame, Stamped steel louver blades
• Package Quantity: 1
• Product Family: FG Series
• Product Type: Filter Grille
• Width: 22.75 in
• Primary brand: Rectorseal
• Sub-range name: FG series
• Functions: Filter grille
• Design: stamped face, fixed blades, hinges parallel to longest side, filtered air return function, for ceiling / sidewall applications, for D1" filter, for residential applications, horizontal blade (parallel to the width)
• Mounting mode: Surface mounting
• Dimensions: H20" x W20" nominal frame size, H508mm x W508mm nominal frame size, 1/2" (12.7mm) blade spacing, 1-3/8" (34.9mm) installation depth
• Order code / Manufacturer SKU: FG1-20X20
• Manufacturer product status: Commercialized
• Equivalent to: FG120X20
