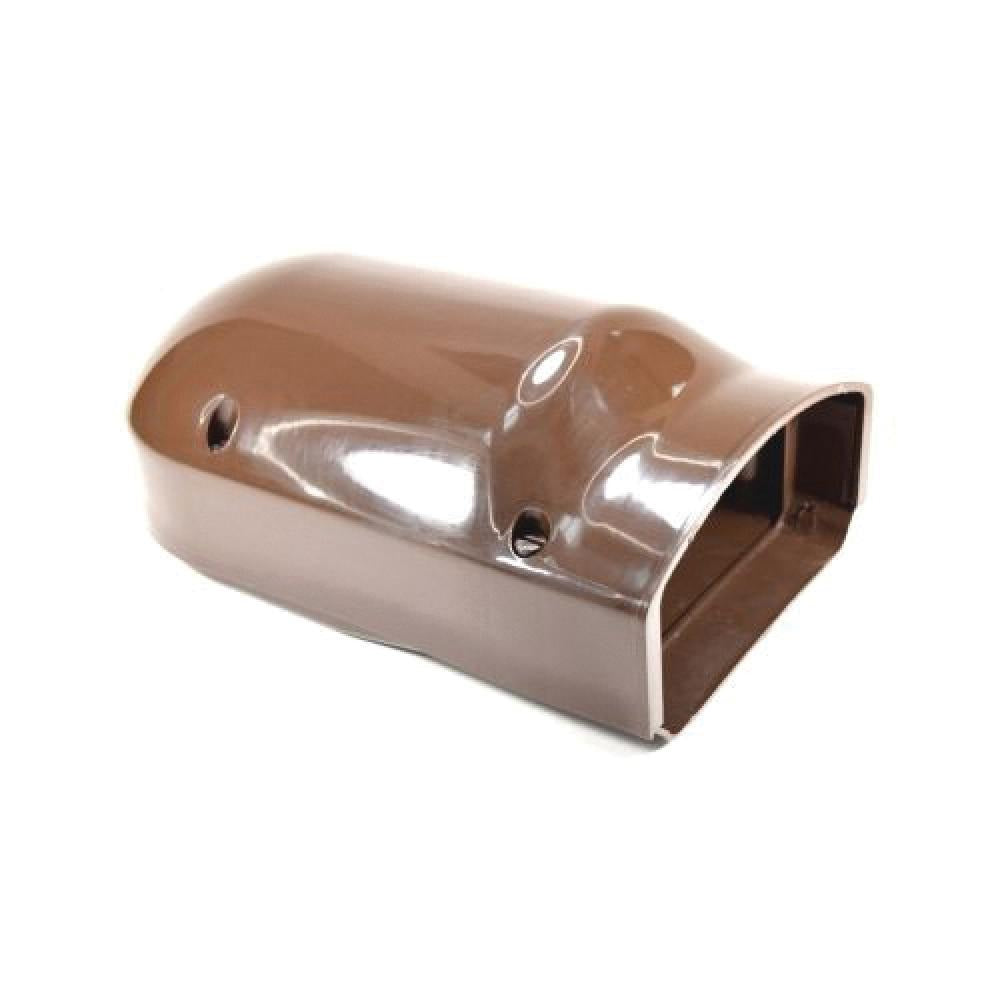

Rectorseal cginltbe Wall Inlet Brown Line Set Cover

Product Description

The RECTORSEAL cginltbe is a wall inlet fitting designed for use with Cover Guard adjustable line set cover systems. It provides a finished entry point where refrigerant line sets, electrical conduit, or other utility runs pass through an exterior or interior wall. The inlet measures 9.44 inches in length, 5.66 inches in width, and between 3.7 and 4.75 inches in height, accommodating a 4-1/2 inch line set cover size. Finished in brown, it is suited for installations where the cover system is routed against brown or earth-tone exterior surfaces. HVAC technicians install this component as part of a complete line set cover assembly.

This wall inlet is intended for residential and light commercial HVAC installations where line sets run along exterior walls and require a clean, weather-resistant transition at the wall penetration point. It is compatible with Cover Guard adjustable line set covers and is rated for temperatures from 4 degrees F to 140 degrees F, making it appropriate for a wide range of climate conditions. The inlet is typically installed at the point where the line set exits the structure and connects to the cover channel running along the wall surface.

Key Features

• Compatible with Cover Guard adjustable line set cover systems in 4-1/2 inch size
• Temperature rating from 4 degrees F to 140 degrees F for broad climate suitability
• Brown finish for aesthetic integration with matching cover channel runs
• Dimensions: 9.44 inches long, 5.66 inches wide, 3.7 to 4.75 inches in height
• Provides a finished wall transition for line sets passing through exterior or interior walls

Compatibility

Designed for use with Cover Guard adjustable line set covers in the 4-1/2 inch size category. No additional specific model compatibility data was provided by the manufacturer for this part.

Installation Notes

Installation is typically performed by a licensed HVAC technician as part of a line set cover system installation. Power to the indoor and outdoor units should be shut off at the disconnect and breaker before routing line sets or working near electrical components. The wall inlet should be secured to the wall surface per the Cover Guard system instructions, ensuring the line set passes through without sharp bends that could damage refrigerant tubing or electrical conductors. Follow local mechanical codes and manufacturer guidelines for proper penetration sealing.
