Rectorseal CGDUC Coverguard Duct 48 in Length

Product Description

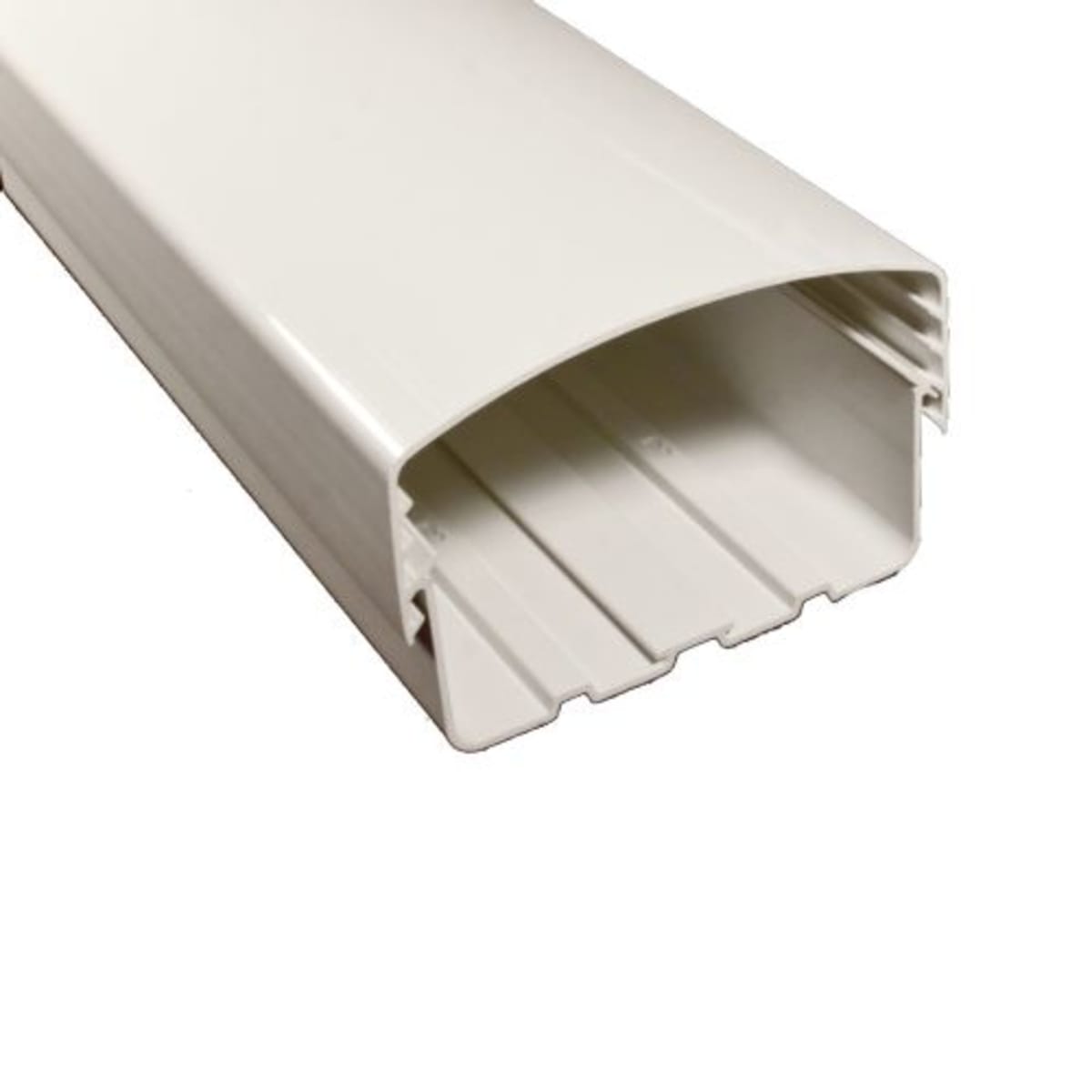

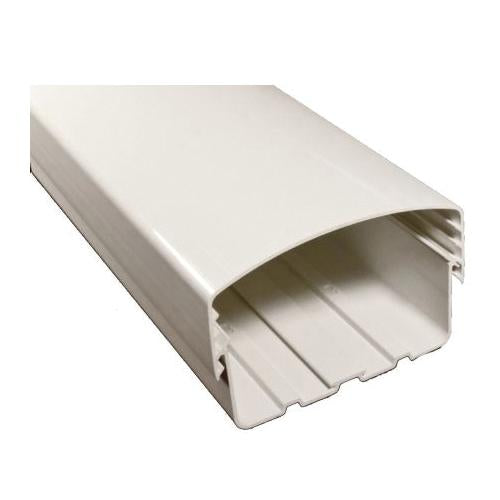

Rectorseal CGDUC is a 48 in Coverguard duct designed to protect and conceal HVAC and refrigerant line sets. The CGDUC provides a channel base and quick-snap cover with adjustable depth to accommodate multi-zone applications and can house multiple linesets or a condensate pump. Constructed of UV-stabilized PVC, the unit includes pre-installed sliding zip tie clip, tie-in clips, and protective peel-n-go film for installation.

• 48 in length with a 5 in channel width for routing and protecting HVAC line sets
• Adjustable depth (expands to accommodate multi-zone systems) and quick-snap cover
• UV-stabilized PVC construction with pre-installed sliding zip tie clip, tie-in clips, and peel-n-go protective film

Product Highlights

48 in line set cover; 5 in width; adjustable depth; UV-stabilized PVC; quick-snap cover

Product Information

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: CGDUC
• Country of Origin: United States

Technical Specifications

• Brand: Rectorseal
• MPN: CGDUC
• Product Type: Cover Guard line duct / Line set cover
• Length: 48 in
• Width: 5 in
• Dimensions: 48 in L x 5 in W x adjustable 2.25 to 3.5 in H
• Adjustable Depth: 2.25 to 3.5 in
• Material: UV-stabilized PVC
• Installation Features: Quick-snap cover; pre-installed sliding zip tie clip; tie-in clips; protective peel-n-go film; 1/4-turn no-rust cam screws
• Use Cases: Protect and conceal HVAC refrigerant lines and multiple line sets; can house condensate pump
• Temperature Rating: 4 to 140 deg F
• Weight: 4.75 lb
• UPC: 019962188145
• Country of Origin: United States
