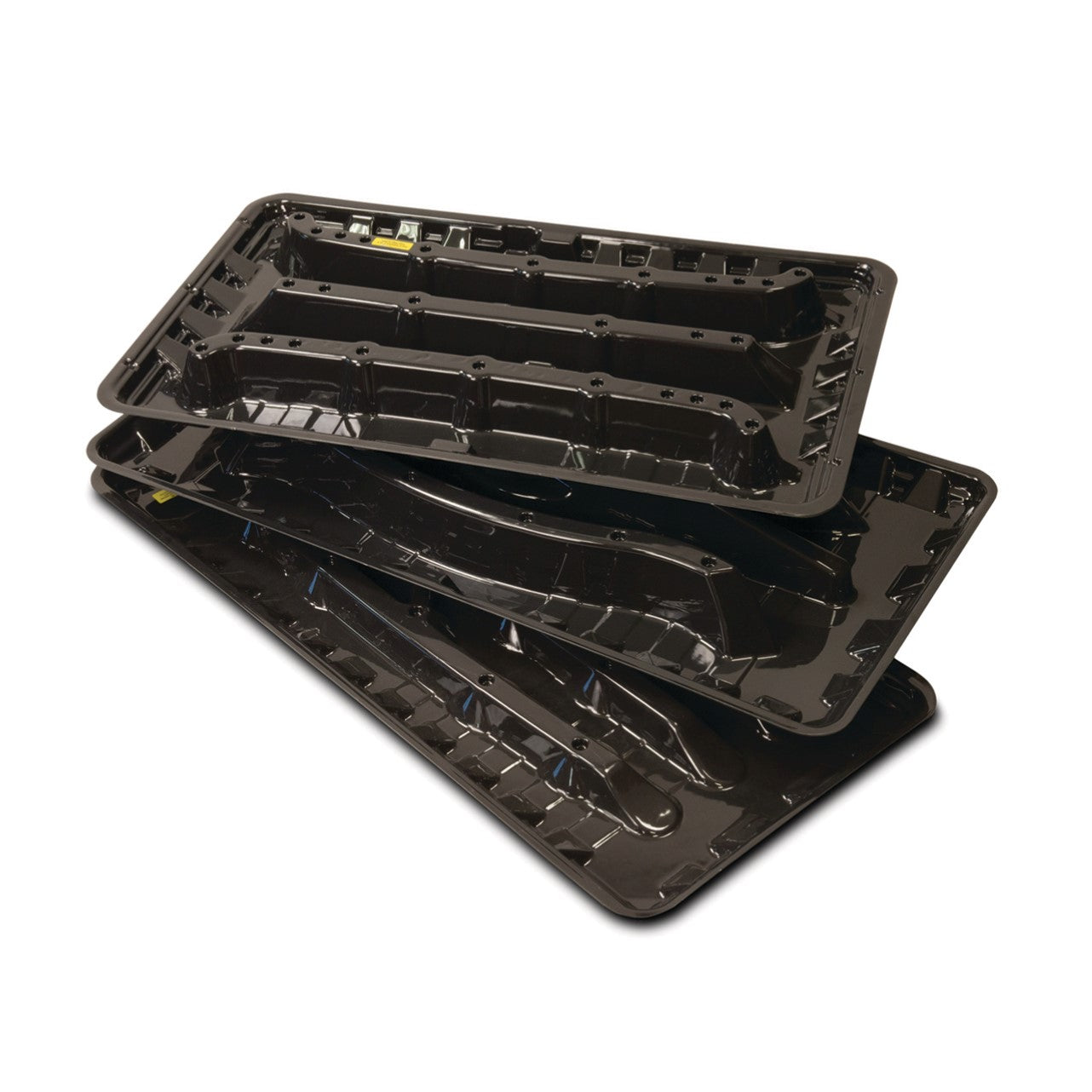

Rectorseal agg2857 Secondary Drain Pan 28x57 Hangable

Product Description

The RECTORSEAL agg2857 is a hangable secondary condensate drain pan designed for HVAC applications where overflow protection is required beneath air handling units and fan coils. Constructed from Dexelar Advanced Polymer, this pan resists corrosion and handles a wide service temperature range of -40 to 260 degrees F. Its large 28 x 57 inch footprint accommodates oversized residential and light commercial HVAC equipment. The hangable design allows installation in attic or suspended ceiling applications where a floor-mounted pan is not practical. Licensed HVAC technicians and service contractors install this pan as a secondary drain safeguard to prevent water damage from primary drain blockages.

This pan is suited for general-purpose HVAC installations covering both residential and light commercial settings. It is commonly installed beneath ceiling-hung or attic-mounted air handlers and packaged units where equipment dimensions require an extended pan. The Dexelar Advanced Polymer material makes it a durable alternative to steel pans that may rust over time, particularly in humid attic environments. The hangable configuration supports installations where support brackets or straps are used to suspend the pan beneath the unit.

Key Features

• Large 28 x 57 inch size accommodates oversized HVAC equipment footprints
• Hangable design for attic and suspended ceiling installations
• Dexelar Advanced Polymer construction resists corrosion and chemical degradation
• Wide service temperature rating of -40 to 260 degrees F suits extreme attic environments
• Outer dimensions of 57.25 x 28.375 x 5.25 inches provide generous overflow capacity
• Inner basin measures 51.75 x 21.5 x 2 inches for contained condensate collection

Compatibility

Designed as a general-purpose secondary condensate drain pan for residential and light commercial HVAC units requiring a hangable pan in the 28 x 57 inch size range.

Installation Notes

Installation is typically performed by a licensed HVAC technician. Power down the HVAC unit at the disconnect or breaker before positioning the pan beneath the equipment. Ensure support brackets or suspension straps are rated for the combined weight of the pan and any collected condensate. Verify the pan is level and that the drain port, if used, is connected to an approved condensate drain line per local mechanical codes.

Technical Specifications

• Material: Dexelar Advanced Polymer
• Outer Dimensions: 57.25 inches length x 28.375 inches width x 5.25 inches depth
• Inner Dimensions: 51.75 inches length x 21.5 inches width x 2 inches depth
• Nominal Size: 28 x 57 inches
• Mount Style: Hangable
• Temperature Rating: -40 to 260 degrees F
• Application: General Purpose HVAC Condensate Secondary Drain Pan

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: agg2857
