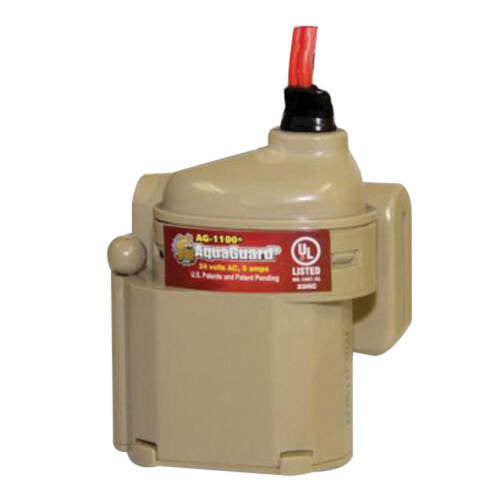

Rectorseal AG-1100+ Magnetic Condensate Overflow Float Switch for Metal Secondary Drain Pans

Product Description

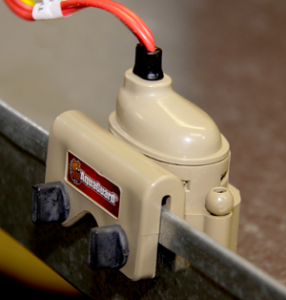

The Rectorseal AG-1100+ Magnetic Condensate Overflow Float Switch is designed for use in metal secondary drain pans. This switch helps to prevent overflow by detecting high water levels and shutting off the system. With its magnetic mounting, it offers easy and drill-free installation, making it ideal for both residential and commercial applications.

• High capacity 5 amp, 24 volt AC magnetic float switch
• Easy installation without drilling
• Suitable for residential and commercial use

Product Highlights

Ideal for HVAC systems, the AG-1100+ helps prevent water damage by shutting off the air conditioner if the pan overflows. The protective housing keeps out insulation, pests, and debris.

Product Information

Standard Information

• Brand: Rectorseal
• Manufacturer: Rectorseal

Technical Specifications

• MPN: AG-1100+
• Power Rating: 24VAC, 5 amp
• Mounting Type: Magnetic
• Features: Pull-up test knob, protective housing, normally open 3rd wire for optional external alarm
• Approval: UL 508
• Patent: US Patent 7,710,283
