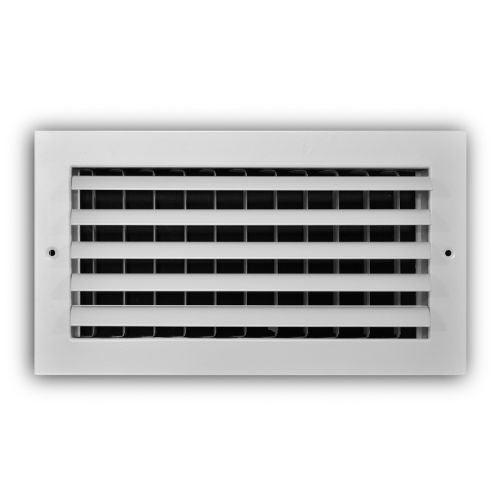

Rectorseal A301HM12X06 TRUaire A301HM sidewall/ceiling supply register 12 x 6 in

Product Description

The Rectorseal A301HM12X06 is a TRUaire A301HM series sidewall/ceiling supply register, measuring 12 x 6 inches. This 1-way deflection register features a 1/2 inch grille spacing and is constructed from durable aluminum with a powder-coated finish. It offers a CFM rating of 280 cfm at 1200 fpm, suitable for various air distribution applications.

• Fin is encased in roll formed 22 ga steel
• Each individual curved blade is fully adjustable for total control
• The outside frame is slightly beveled and manufactured without mitered corner

Product Highlights

Aluminum construction with adjustable blades for precise airflow control in sidewall or ceiling installations.

Product Information

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: A301HM12X06

Technical Specifications

• Series: A301HM
• Size: 12 x 6 in
• Grille Spacing: 1/2 in
• Deflection Type: 1-Way
• CFM Rating: 280 cfm at 1200 fpm
• Area: 0.235 sq-ft
• Length: 2-1/4 in
• Width: 13-3/4 in
• Height: 7-3/4 in
• Material: Aluminum
• Finish: Powder-Coated
• Color: White
