Product Description

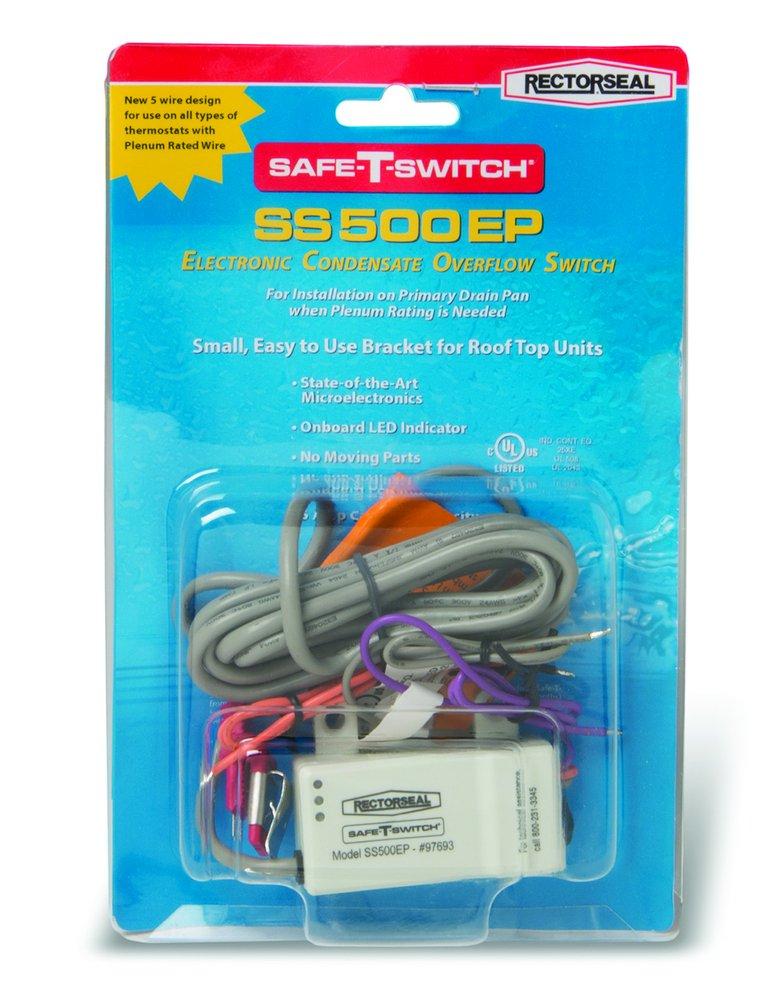

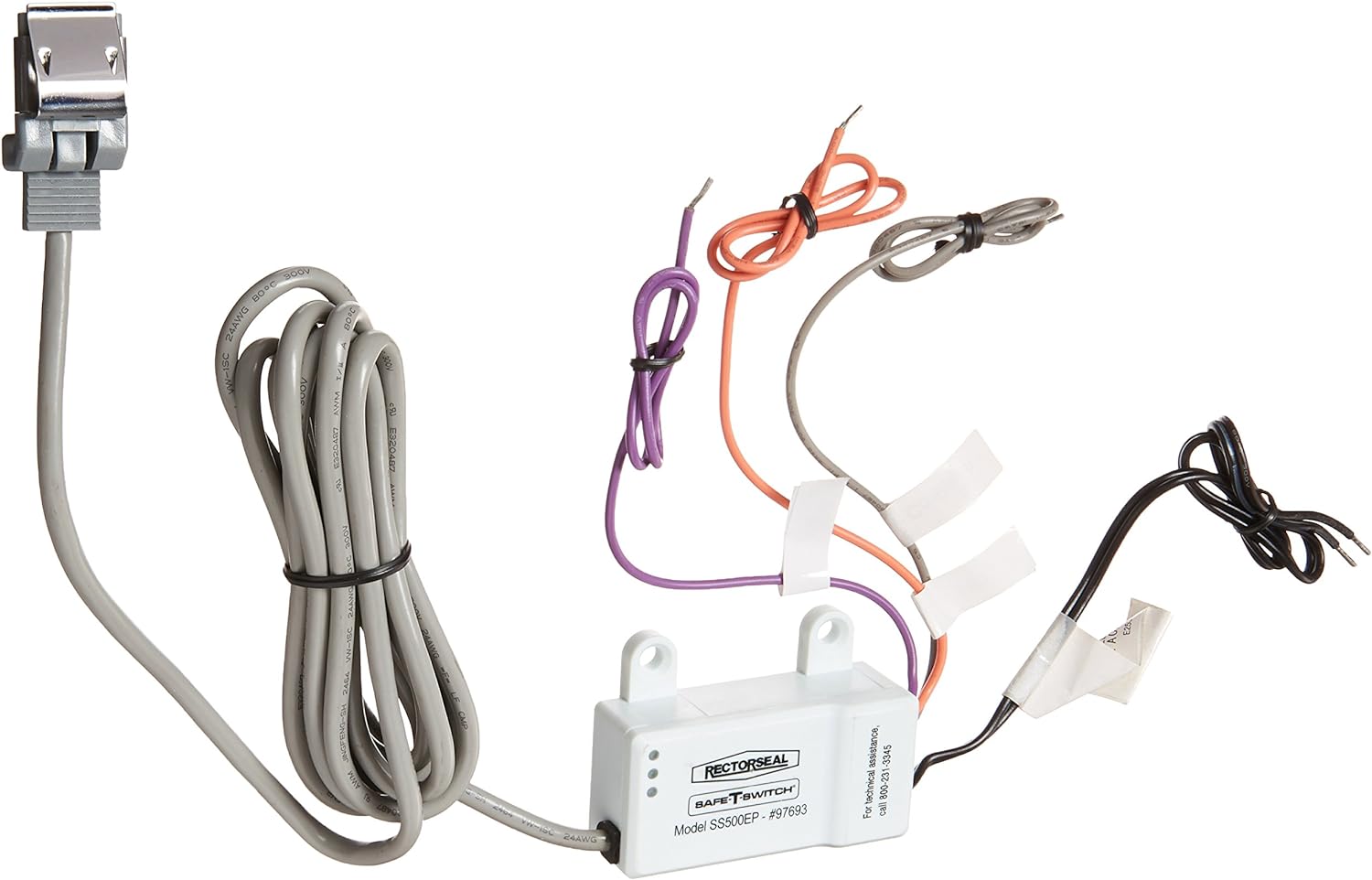

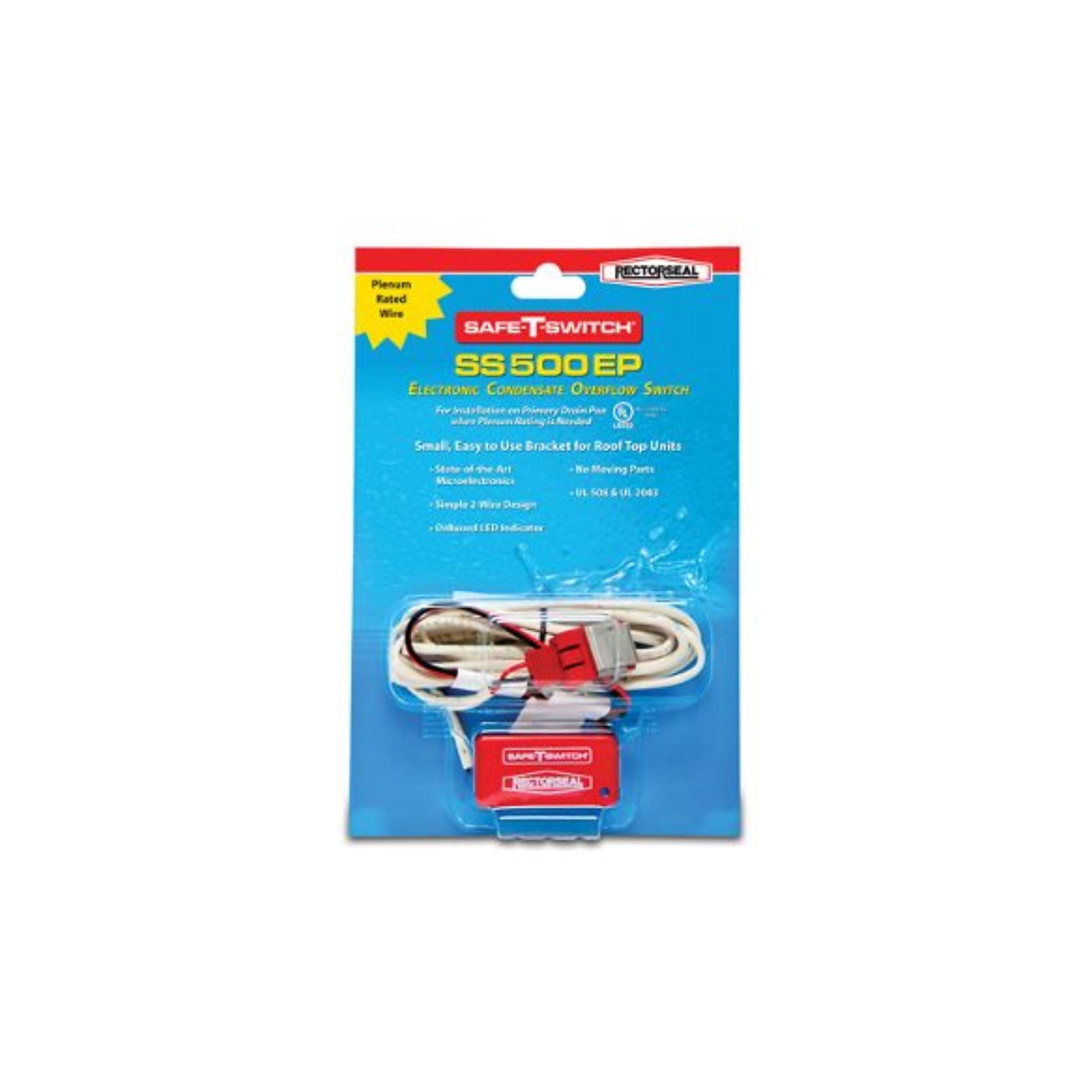

The Rectorseal Safe-T-Switch SS500EP is an electronic condensate overflow switch designed for installation in primary drain pans, especially where a plenum rating is required. Its compact and low-profile design makes it suitable for commercial rooftop downflow units.
- Five-wire design with onboard LED indicator.
- UL 508 and 2043 listed, ensuring compliance with safety regulations.
- Plenum rated with a 24 VAC operation.
Product Highlights
This product features an electronic probe sensor that can be connected to red or yellow wire configurations. It is perfect for applications requiring a small, efficient, and reliable switch for condensate management.
Product Information
Standard Information
-
Brand: Rectorseal
-
MPN: 97693
Technical Specifications
-
Dimensions: Switch body: 2.5 inches x 1.25 inches x 1 inch, Probe: 1.5 inches x 0.75 inches x 0.7 inches
-
Weight: 0.28 lbs
-
Connection: Plenum lead wire
-
Plenum Rated: Yes
-
Voltage: 24 VAC
-
Package Includes: Single unit per pack
-
Mount Type: Drain Pan
-
UL Listed: Yes
-
Wire Gauge: 18 AWG
