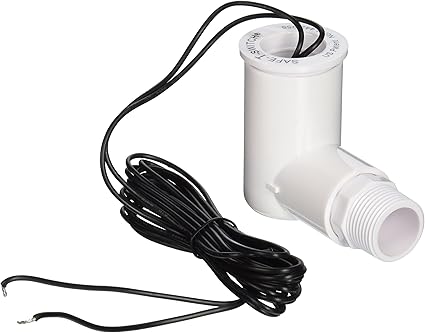

Rectorseal 97637REC Safe-T-Switch Condensate Overflow Switch with 3/4 inches Adapter

Product Description

The RECTORSEAL 97637REC Safe-T-Switch detects clogged air conditioner condensate drains and shuts off the system. Using the included 3/4" adapter, it can be installed on the auxiliary outlet of the primary drain pan. The magnetic reed switch allows for off-center installation. Designed for HVAC applications, it provides easy access for maintenance and service.

• Detects clogged air conditioner condensate drain and shuts off the system using a 3/4" adapter.
• Magnetic reed switch allows for off-center installation.
• Provides easy access to the switch for quick service and primary drain line access.

Product Highlights

Condensate overflow switch with magnetic reed, easy access, and 3/4" adapter for HVAC systems.

Product Information

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 97637REC

Technical Specifications

• Operating Voltage: 110 Volts
• Contact Type: Normally Closed
• Connector Type: Plug In
• Brand: Rectorseal
• Item dimensions L x W x H: 2 x 5.5 x 8.25 inches
• Mounting Type: Wall Mount
• Actuator Type: Magnetic Reed
• Contact Material: Plastic
• International Protection Rating: IP53
• Lower Temperature Rating: 25 Degrees Fahrenheit
• Upper Temperature Rating: 125 Degrees Fahrenheit
• Wattage: 30 watts
• Unit Count: 1.0 Count
• Number of Items: 1
• Manufacturer: Rectorseal
• Control Type: Water Level
• Compatible Devices: HVAC devices (Air Conditioners, Heat Pumps, Furnaces)
• Material: PVC
