Rectorseal 97622 Safe-T-Switch SS610E Mini-Split System 15-250 VAC

Product Description

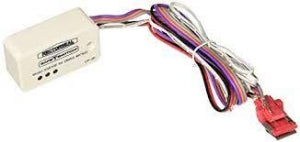

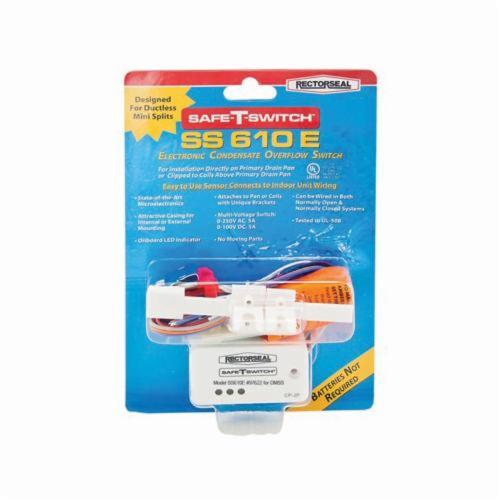

The RectorSeal Safe-T-Switch SS610E, model number 97622, operates with a voltage range of 15 to 250 VAC and 15 to 100 VDC. It is designed for use in mini-split systems and offers reliable condensate management. This switch connects to indoor units and can attach directly to the drain pan or be clipped to coils. The unit includes a unique bracket for easy installation and does not require batteries as it draws power from the A/C system.

• Sensor connects to indoor units.
• Onboard LED indicator can be mounted to the side of the unit.
• Multi-voltage input supports a variety of installations.

Product Highlights

The Safe-T-Switch SS610E continuously monitors the condensate level to prevent overflow. If water is detected, the switch will shut down the A/C system to avoid damage.

Product Information

Standard Information

• Manufacturer: RectorSeal Corporation
• Part Number: 97622

Technical Specifications

• Voltage Rating: 15 to 250 VAC, 15 to 100 VDC
• Suitable For Use With: Mini-Split System
• Domestic/Import: Import
• Dimensions: 5.5 inches L x 2.25 inches W x 8.125 inches H
• Wattage: 0.5 W
• Contact Configuration: NC/NO
• Standards/Certifications: cULus Listed
