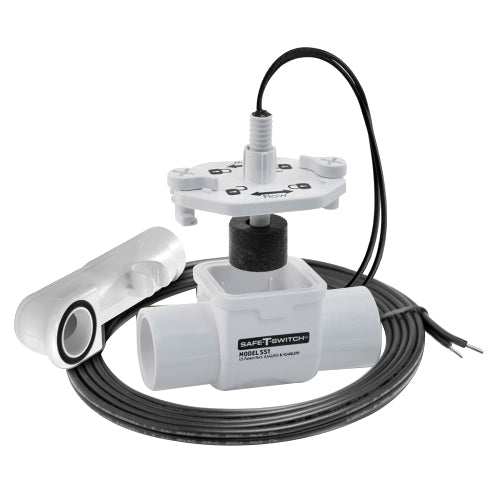

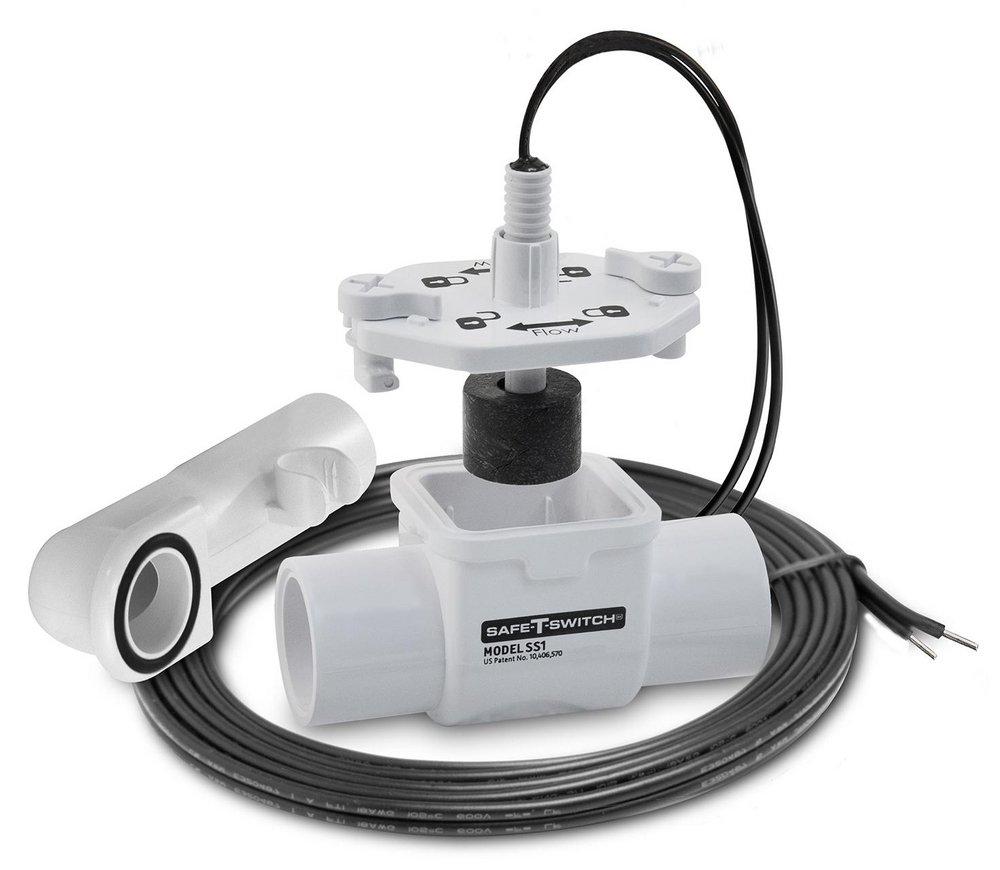

Rectorseal 97085 Safe-T-Switch SS1 24VAC 1.25A Float Switch

Product Description

The Rectorseal Safe-T-Switch SS1, MPN 97085, is a float switch designed for managing condensate overflow in HVAC systems. This switch helps detect clogged A/C condensate drains, shutting off the system to avoid water damage and maintain efficiency.

• Magnetic reed switch for reliable operation
• Adjustable ratcheting float level for different applications
• Code compliant with inline cleanout features

Product Highlights

This switch can be installed vertically, horizontally, or inline. It comes with a cleanout tool for easy maintenance and can handle slopes up to forty-five degrees.

Product Information

Standard Information

• MPN: 97085
• Brand: Rectorseal

Technical Specifications

• Voltage Rating: 24VAC
• Ampere Rating: 1.25A
• Material: Plastic
• Length: five and one-half inches
• Width: one and three-quarter inches
• Height: nine and one-quarter inches
• Cable Length: six feet
• Wire Size: eighteen AWG
• Applications: For primary drain outlet
