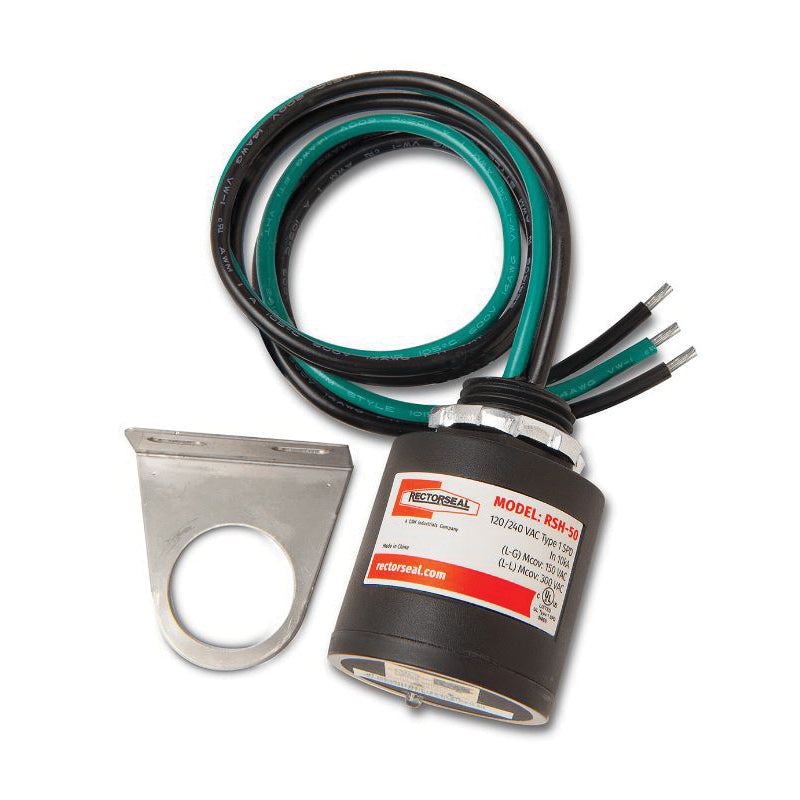

Rectorseal 96415 RSH Surge Protection Device 120V/240V 1-Phase

Product Description

The Rectorseal RSH-50 Surge Protection Device (MPN: 96415) offers essential surge protection for 120-240 V single-phase HVAC systems. This device is designed to shield air conditioning units, heat pumps, and ductless mini-split systems from transient over-voltage and electrical surges. The surge protector incorporates advanced technologies like Metal Oxide Varistor (MOV) and Gas Discharge Tube (GDT) to prevent damage from electrical spikes, ensuring safety and reliability in operation.

• Protects single-phase HVAC systems
• Features LED indicator for power and surge protection
• Weather rated for outdoor use

Product Highlights

This surge protector is compact and easy to install, making it suitable for various applications in residential and commercial settings. It is built to withstand harsh conditions while providing reliable service to protect valuable HVAC equipment.

Product Information

Standard Information

• Brand: Rectorseal
• Part Number: 96415

Technical Specifications

• Type: Surge Protector
• Voltage: 120/240 VAC
• Phase: 1 ph
• Short Circuit Current Rating: 200 kA
• Discharge Current Capacity: 50 kA Single, 10 kA per phase
• Mounting: Suitable for electrical panels or wall installation
• Dimensions: 4.4 x 1.62 x 1.6 inches
• Weight: 0.367 lbs
