Rectorseal 905-14x8 Aluminum Return Air Grille 14x8

Product Description

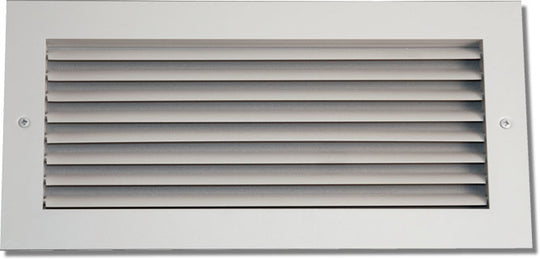

The RECTORSEAL 905-14x8 is a horizontal fixed-blade return air grille designed for surface-mount installation in residential and light commercial HVAC duct systems. Constructed from extruded T6 aluminum at 0.055 inch wall thickness, the grille features 45 fixed blades oriented parallel to the longest dimension, providing consistent, uniform airflow across the face of the opening. Countersunk mounting holes and color-matching Phillips posi-drive screws deliver a flush, finished appearance on walls or ceilings. Licensed HVAC technicians and sheet metal contractors install this grille as a standard return air termination point in forced-air systems.

The 905-14x8 suits residential and light commercial forced-air return air applications. It is intended for surface-mount installation over a 14 by 8 inch duct opening. The fixed-blade design keeps installation simple and reduces moving parts. Optional configurations available within the 905 series include a recessed opposed-blade damper, T-bar mount, reinforced construction, and insect screen. A stainless steel version is also available in the 1335-1338 series for corrosive or high-humidity environments. Fractional, inner-dimension, and outside-dimension sizing options are available for custom fit requirements.

Key Features

• Extruded T6 aluminum construction at 0.055 inch wall thickness for lightweight, corrosion-resistant durability
• 45 fixed airfoil blades parallel to longest dimension for uniform return airflow
• Countersunk mounting holes with color-matching Phillips posi-drive screws for a flush wall appearance
• Surface-mount design fits directly over standard return air duct openings
• Available in standard color, designer color, or satin anodized finish
• Tamper-proof screw option available for secured installations

Compatibility

Designed as an OEM-style surface-mount return air grille for residential and light commercial forced-air HVAC duct systems requiring a 14 by 8 inch horizontal fixed-blade return grille.

Installation Notes

Installation is typically performed by a licensed HVAC technician or sheet metal contractor. Power down the air handler or furnace at the disconnect before removing or replacing any grille. Verify the duct rough opening dimensions match the grille neck size before fastening. Use the provided countersunk posi-drive screws to secure the grille flush to the wall or ceiling surface, ensuring no gaps that could cause air bypass.

Technical Specifications

• Material: Extruded T6 aluminum
• Wall Thickness: 0.055 inches
• Blade Orientation: Horizontal fixed blade, parallel to longest dimension
• Number of Blades: 45
• Mounting Type: Surface mount
• Grille Size: 14 x 8 inches
• Finish Options: Standard color, designer color, satin anodized
• Fasteners: Color-matching Phillips posi-drive screws, countersunk; tamper-proof option available

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 905-14x8
