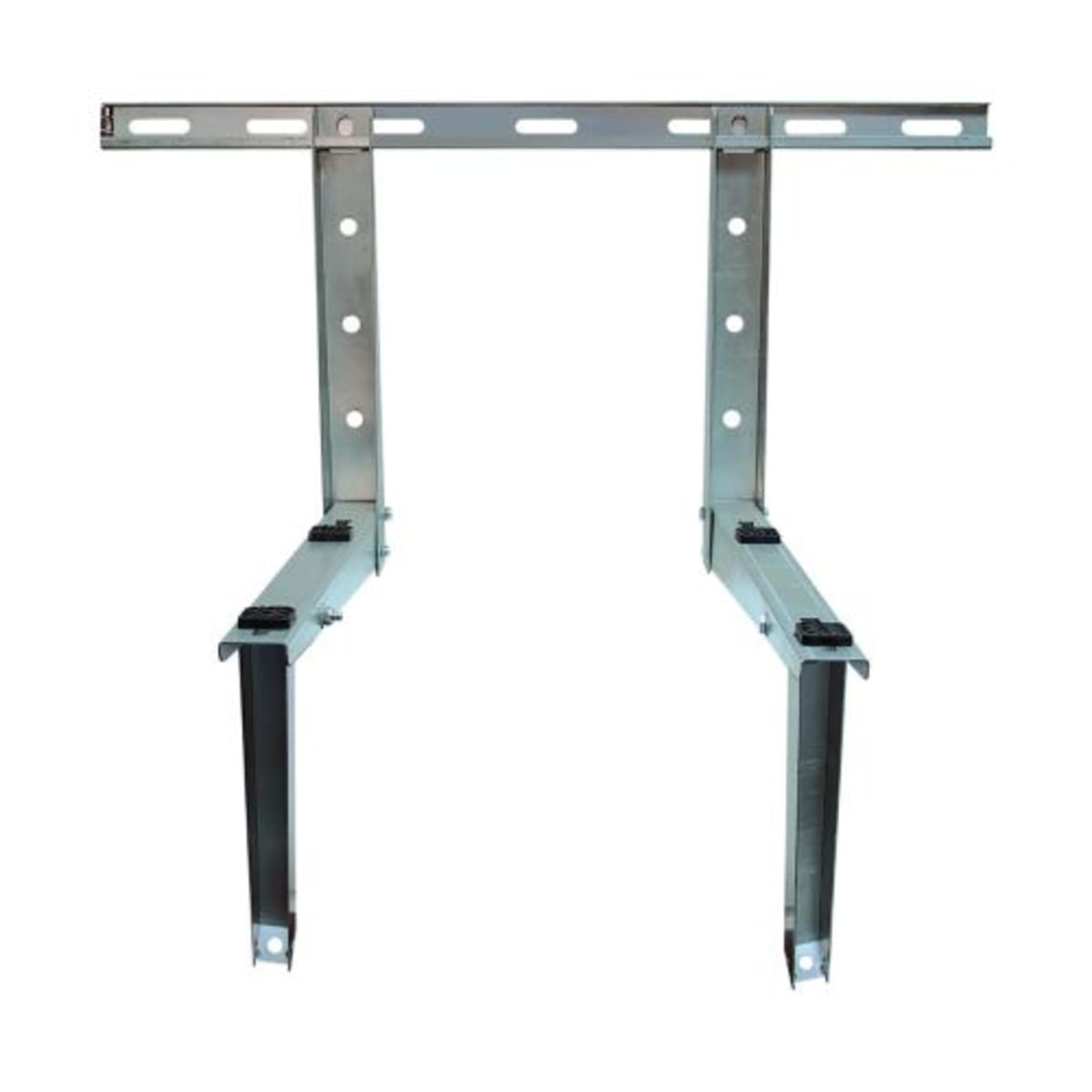

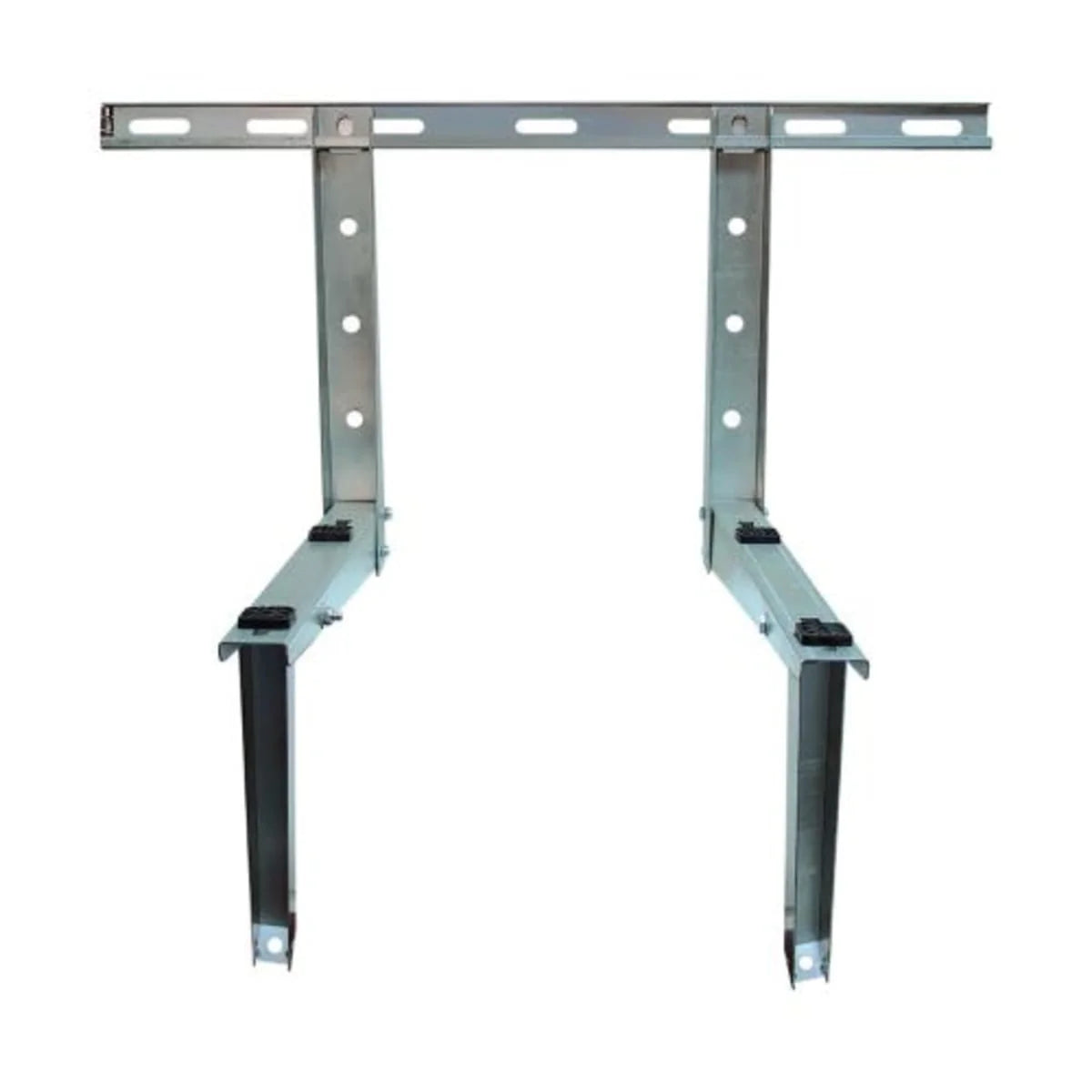

RectorSeal 87740 Universal Bracket Wall Cond Bracket, WBB500HR

Product Description

The RectorSeal 87740 Universal Bracket Wall Cond Bracket, WBB500HR is designed for reliable mounting of mini-split systems. Its construction from heavy-duty steel with a hot-dipped galvanized finish ensures durability in various weather conditions. The bracket features a sliding crossbar for a versatile equipment width range, allowing for easy adjustments during installation.

• Max load capacity of 500 lbs
• Min/Max mounting width: nine and three quarters inches to thirty-one inches
• Min/Max mounting depth: ten and one half inches to sixteen inches

Product Highlights

This wall condenser bracket is engineered for lasting performance and stability. It is Miami-Dade County approved for quality assurance.

Product Information

Standard Information

• Brand: RectorSeal
• Part Number: 87740

Technical Specifications

• Material: Steel
• Overall Dimensions: thirty-five and three quarters inches L x four and six hundredths inches W x three and forty-six hundredths inches H
• Weight: thirteen lbs
• Max Load Capacity: 500 lbs
• Mounting Width: nine and three quarters to thirty-one inches
• Mounting Depth: ten and one half to sixteen inches
• Finish: Hot dip galvanized
