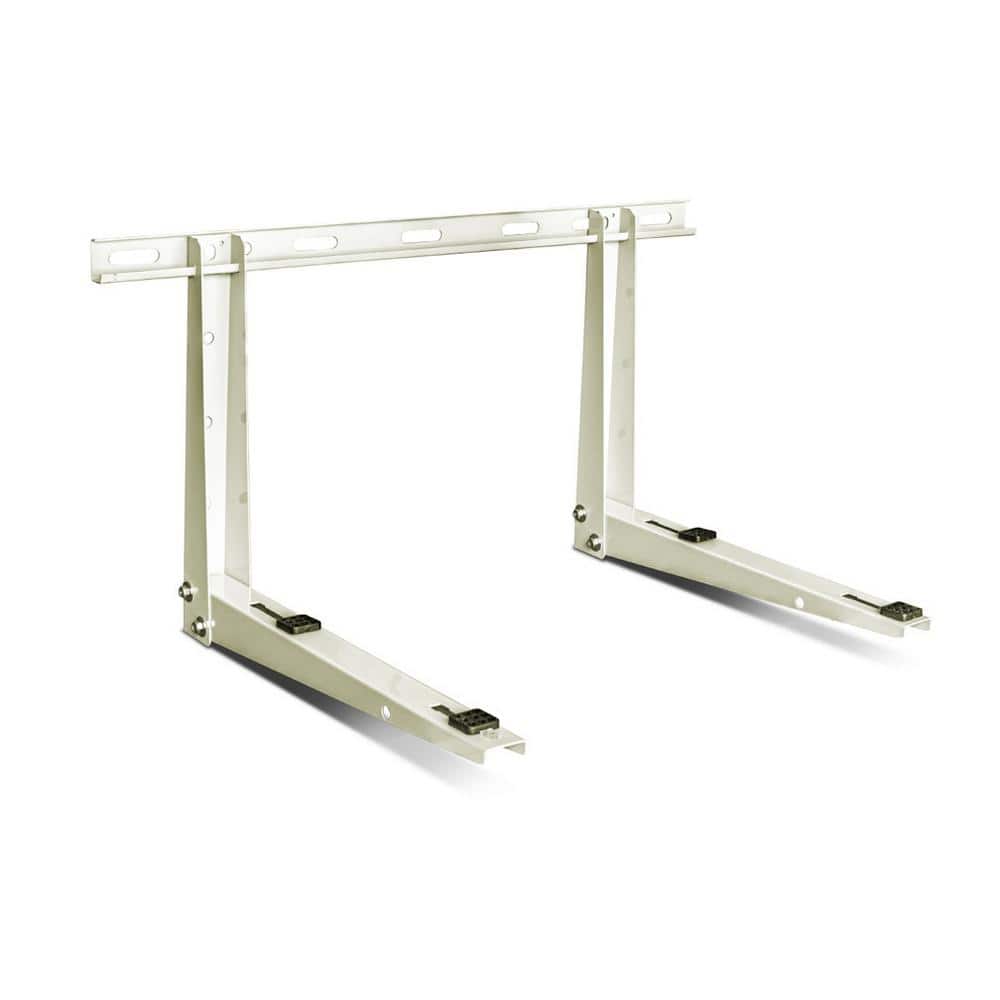

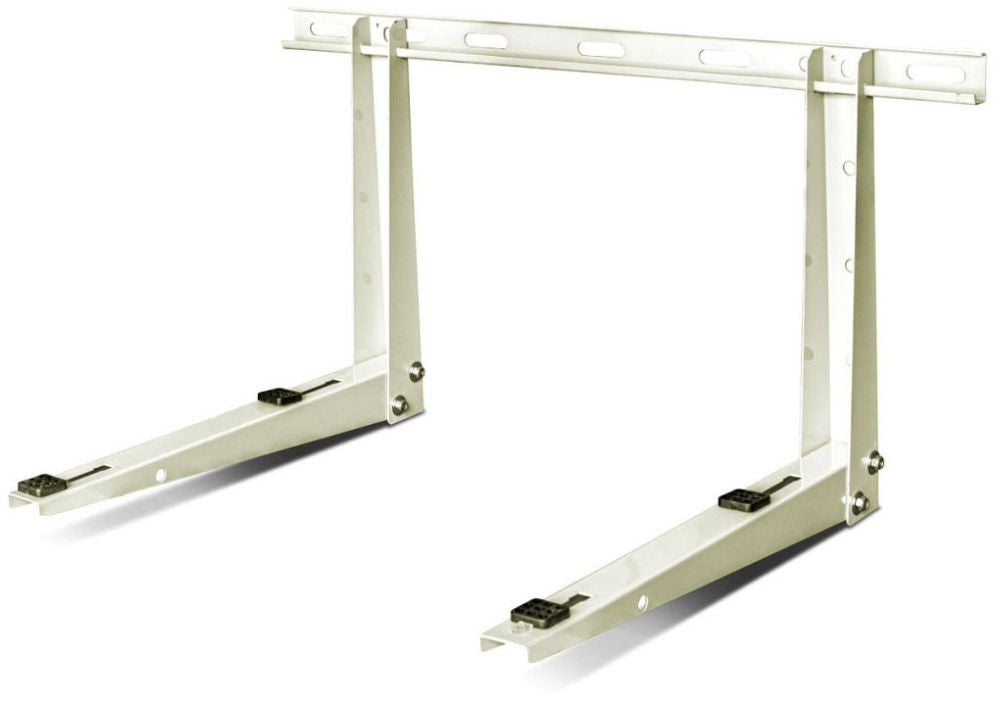

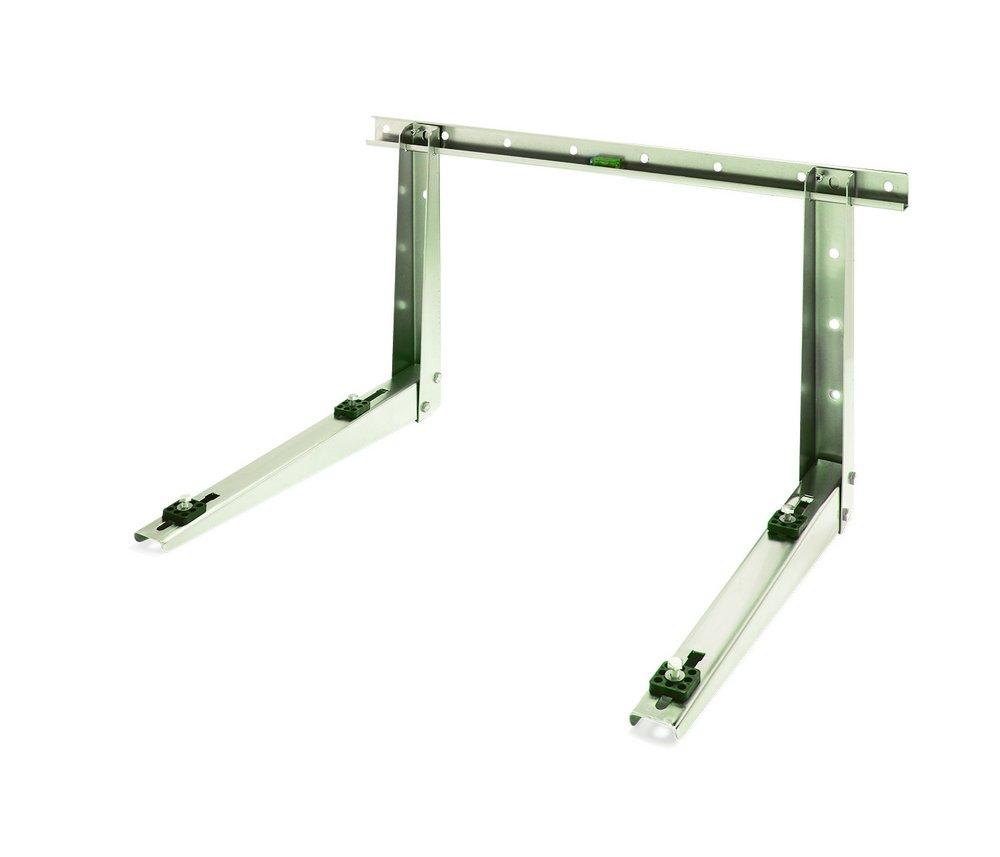

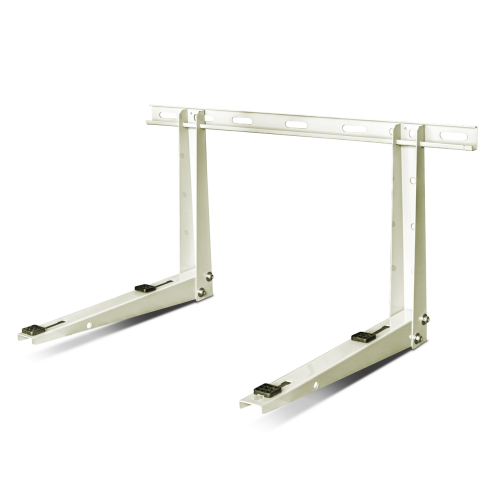

Rectorseal 87733 WBB300 Mini-Split Steel Wall Bracket 22 in L x 33-1/2 in W x 18 in H REC87733

Product Description

Rectorseal 87733 (WBB300) is a wall bracket designed to support mini-split condenser units with a maximum load capacity of 300 lb. The bracket is constructed from heavy-duty steel with a powder-coated finish and features a sliding cross bar and integrated level to accommodate a range of equipment widths. It includes mounting hardware and fits typical condenser dimensions of 22 in by 33-1/2 in by 18 in, with adjustable mounting width and depth ranges.

• Supports up to 300 lb; heavy-duty steel construction with powder-coated finish
• Sliding cross bar and integrated liquid level for adjustable equipment width and easier installation
• Adjustable mounting width 9-3/4 in to 31 in and mounting depth 10-1/2 in to 16 in; includes mounting hardware

Product Highlights

300 lb capacity, adjustable width/depth, sliding cross bar with built-in level

Product Information

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 87733
• Country of Origin: China

Technical Specifications

• Brand: Rectorseal
• MPN: 87733
• Model: WBB300
• Part Number: REC87733
• Product Name: WBB300 Mini-Split Steel Wall Bracket
• Material: Heavy duty steel
• Finish: Powder coat
• Max Load Capacity: 300 lb
• Dimensions (L x W x H): 22 in x 33.5 in x 18 in
• Min/Max Mounting Width: 9-3/4 in - 31 in
• Min/Max Mounting Depth: 10-1/2 in - 16 in
• Mounting Type: Wall
• Suitable For: Mini-split condenser / outdoor condenser
• Includes: Crossbar; bracket arms; bolts; hex lag screws; concrete anchors; clip nuts; liquid level; M6 screws; installation instructions
• Weight: 12.0 lb
• Country of Origin: CN
• UPC: 021449877336
• GTIN/EAN: 0021449877336
