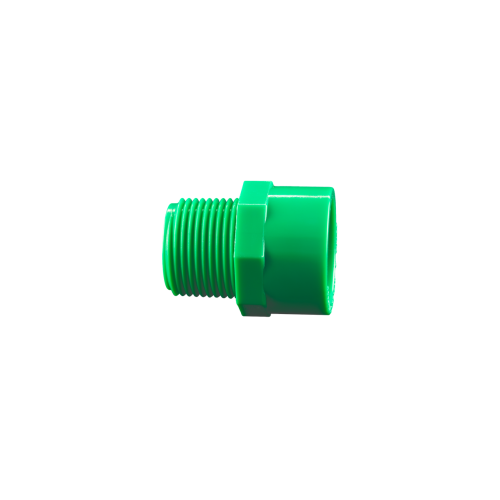

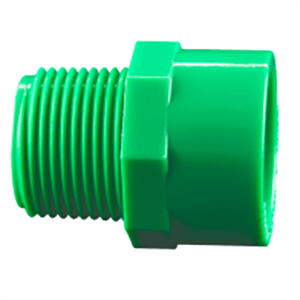

Rectorseal 86605 Cleardrain Pvc Male Adapter 3/4 Inch SCH40

Product Description

The RECTORSEAL 86605 is a 3/4 inch Schedule 40 PVC male adapter designed for use with the ClearDrain condensate management system. This fitting connects the ClearDrain assembly to standard PVC condensate drain lines, providing a secure, solvent-weld or threaded transition point within the drain system. The 86605 is made from Schedule 40 PVC, offering the pressure rating and chemical resistance expected in HVAC condensate and drain piping applications. HVAC technicians and plumbers install this adapter during new system setup or when retrofitting an existing condensate line with ClearDrain components.

This adapter is suited for residential and light commercial HVAC condensate drain installations where ClearDrain fittings are specified. It is used at the point where the ClearDrain device integrates into a 3/4 inch SCH40 PVC drain line, a common configuration in split systems, air handlers, and packaged units. The male adapter end allows connection to a female-threaded or slip-fit fitting in the condensate piping run.

Key Features

• 3/4 inch size fits standard HVAC condensate drain line configurations
• Schedule 40 PVC construction for durability and chemical resistance
• Male adapter end for integration into ClearDrain condensate assemblies
• Compatible with standard PVC solvent-weld and threaded fittings

Compatibility

Designed for use with the RECTORSEAL ClearDrain condensate drain system in 3/4 inch Schedule 40 PVC drain line applications.

Installation Notes

Installation is performed by licensed HVAC technicians or plumbers. Shut off the HVAC system and allow the condensate line to drain before cutting into the existing piping. Use standard PVC primer and cement when making solvent-weld connections, following local plumbing and mechanical codes. Do not over-tighten threaded connections, as PVC threads can crack under excessive torque.

Technical Specifications

• Size: 3/4 inches
• Schedule: SCH40
• Material: PVC
• Connection Type: Male Adapter
• UPC: 021449866057

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 86605
