Rectorseal 86604 3/4 in Sch 40 Pvc Tee Cleardrain

Product Description

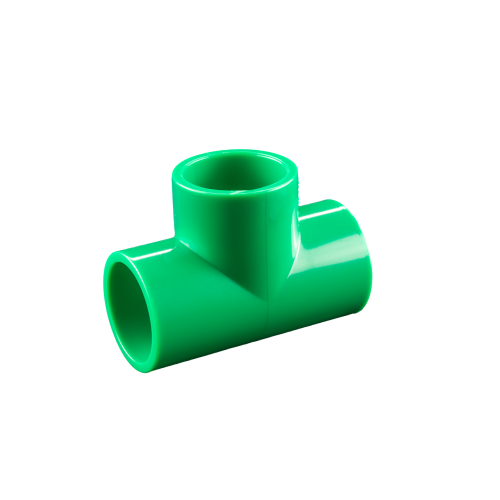

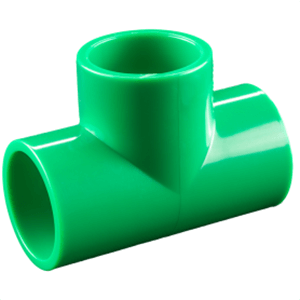

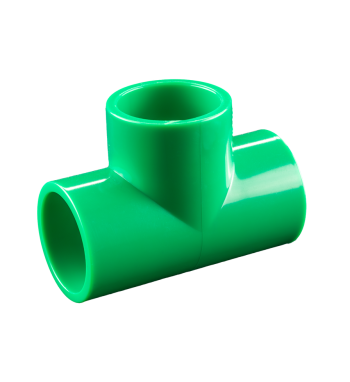

The RECTORSEAL 86604 is a 3/4-inch Schedule 40 PVC tee fitting designed for use in condensate drain line assemblies. Built from Schedule 40 PVC, it delivers the wall thickness and pressure rating required for residential and light commercial HVAC condensate systems. The tee configuration allows for branch connections in drain line runs, making it a standard component in ClearDrain system installations. HVAC technicians and plumbers install this fitting during new equipment startups and condensate line service calls.

This fitting is suited for 3/4-inch condensate drain applications commonly found on split-system air handlers, packaged units, and fan coil units. It is a key component within the RECTORSEAL ClearDrain product line, which is designed to simplify condensate management in residential and light commercial HVAC installations. Its standard tee geometry supports inline drain runs with a side outlet for access ports, cleanout connections, or secondary drain tie-ins.

Key Features

• 3/4-inch connection size for standard HVAC condensate drain lines
• Schedule 40 PVC construction provides adequate wall thickness for condensate system pressures
• Tee configuration supports branch connections in drain line assemblies
• PVC material resists corrosion and biological buildup common in condensate environments
• Compatible with standard solvent-weld PVC fittings and pipe of the same schedule and size

Compatibility

Designed for use within the RECTORSEAL ClearDrain condensate drain line system. Compatible with 3/4-inch Schedule 40 PVC pipe and fittings using standard solvent-weld connections.

Installation Notes

Installation is typically performed by licensed HVAC technicians or plumbers as part of condensate line assembly or repair. Shut off the air handling unit and confirm the condensate line is clear before cutting into an existing drain run. Use appropriate PVC primer and solvent cement per the fitting manufacturer and local plumbing code requirements. Follow local mechanical and plumbing codes for condensate drain sizing, slope, and termination point.

Technical Specifications

• Connection Size: 3/4 inches
• Material: PVC
• Schedule Rating: SCH 40

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 86604
