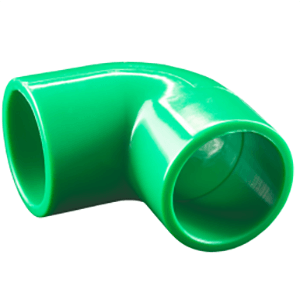

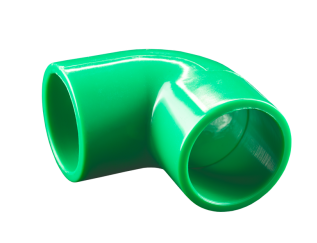

Rectorseal 86602 Pvc 90 Degree Elbow 3/4 Inch Sch 40

Product Description

The RECTORSEAL 86602 is a 3/4-inch Schedule 40 PVC 90-degree elbow designed for use in condensate drainage systems under the ClearDrain product line. This fitting redirects condensate flow at a right angle within PVC drain lines, providing a secure, leak-resistant connection in low-pressure drain applications. Constructed from Schedule 40 PVC, it offers chemical resistance suitable for the slightly acidic condensate produced by high-efficiency HVAC equipment. HVAC technicians and plumbers install this fitting during new system commissioning or as a replacement in existing condensate drain assemblies.

This elbow is used in residential and light commercial HVAC condensate drain lines, typically connecting to the secondary drain port of an evaporator coil, air handler, or condensing unit drain pan. It fits into PVC condensate piping runs where a 90-degree directional change is required. The ClearDrain line is engineered for compatibility with standard PVC condensate drain system components and is commonly installed alongside condensate traps, tees, and cleanout fittings.

Key Features

• 3/4-inch connection size fits standard condensate drain line piping
• 90-degree elbow geometry for right-angle directional changes in drain runs
• Schedule 40 PVC construction provides durability and chemical resistance
• Part of the ClearDrain system, designed for consistent fit with compatible condensate components
• Lightweight PVC material simplifies handling and cutting during installation

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 3/4-inch Schedule 40 PVC condensate drain systems in residential and light commercial HVAC applications.

Installation Notes

Installation is typically performed by a licensed HVAC technician or plumber. Shut off the air handler or cooling system and allow the drain line to clear before cutting into existing piping. Use standard PVC primer and solvent cement rated for Schedule 40 PVC when making solvent-weld connections, and follow local mechanical and plumbing codes for condensate drain sizing and trap requirements. Do not apply excessive force when seating the fitting, as PVC is subject to cracking under stress.

Technical Specifications

• Connection Size: 3/4 inches
• Fitting Type: 90-degree Elbow
• Material: PVC
• Schedule Rating: SCH 40

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 86602
