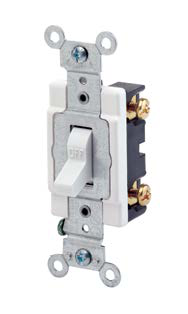

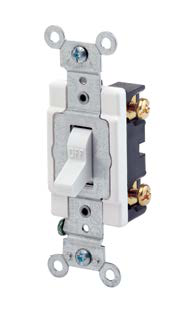

Rectorseal 84707 Silent Toggle Switch 20A 120-277V Single Pole

Product Description

The RECTORSEAL 84707 is a heavy-duty silent toggle switch designed for single-pole branch circuit and lighting control in both residential and commercial installations. Rated at 20 amps across a 120 to 277 volt AC range, it handles demanding load requirements without the audible click common to standard toggle switches. The grounded device includes a green grounding terminal for code-compliant wiring. The thermoplastic body provides durable insulation, and side-wire screw terminals allow straightforward conductor termination. Licensed electricians are the primary installers for this device in finished wall applications.

The 84707 is suited for residential lighting circuits, commercial branch circuit switching, and any single-pole control application where quiet operation is a priority. Its 120 to 277 volt rating makes it appropriate for both standard residential 120-volt circuits and commercial 277-volt fluorescent or LED lighting systems. The ivory finish is a common neutral color that coordinates with standard wall plates in office, retail, and residential environments. It mounts in a standard single-gang electrical box using conventional hardware.

Key Features

• Silent action mechanism reduces audible switching noise compared to standard toggle switches
• Rated 20 amps at 120 to 277 volts AC for broad circuit compatibility
• Single-pole configuration for standard on-off lighting and branch circuit control
• Grounded device with dedicated green grounding terminal for code-compliant installations
• Thermoplastic body construction for durable electrical insulation
• Side-wire screw terminals compatible with standard single-gang electrical boxes
• UL listed

Compatibility

Designed as an OEM-style replacement or new-installation toggle switch compatible with standard single-gang electrical boxes in residential and commercial lighting and branch circuit switching applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always de-energize the circuit at the breaker panel and verify the absence of voltage with a meter before handling any wiring or terminals. Ensure the grounding terminal is connected to the equipment ground conductor as required by code. Do not exceed the device amperage or voltage rating for the circuit being controlled.

Technical Specifications

• Amperage Rating: 20 amps
• Voltage Rating: 120 to 277 volts AC
• Configuration: Single Pole
• Color: Ivory
• Terminal Type: Side-wire screw terminals
• Body Material: Thermoplastic
• Grounding: Grounded device with green grounding terminal
• Certifications: UL Listed

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 84707
