Rectorseal 84105 Ducting (4.5 in x 12 ft)

Product Description

Rectorseal 84105 is a 4.5-inch wall duct kit designed to protect HVAC line sets, wiring and drain hoses. The kit is composed of PVC sections that provide a 12 ft cover and conceal refrigerant lines for mini-split, high-velocity and conventional split air conditioner systems. The assembly is UV stabilized and fire resistant, rated for -4°F to 140°F, and supplied with fittings and couplers for wall installation.

• 4.5 in diameter, 12 ft total length (provided as modular sections)
• PVC construction; UV stabilized and fire resistant; temperature rating -4°F to 140°F
• Includes ducting sections, couplers, wall inlet, end fitting and 90° flat ell; snap-together design for access

Product Highlights

Wall-mounted PVC lineset cover kit (4.5 in, 12 ft) for concealing and protecting HVAC refrigerant lines, wiring and drain hoses.

Product Information

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: 84105
• Country of Origin: USA

Technical Specifications

• Brand: Rectorseal
• MPN: 84105
• Model: LDK122
• SKU / Inventory SKU: LDK-122-W
• Product Type: Line set cover / Wall duct kit
• Diameter: 4.5 in (internal duct diameter)
• Length: 12 ft (total assembled length; supplied as 3 x 4 ft sections)
• Material: PVC
• Finish: Satin
• Temperature Range: -4°F to 140°F

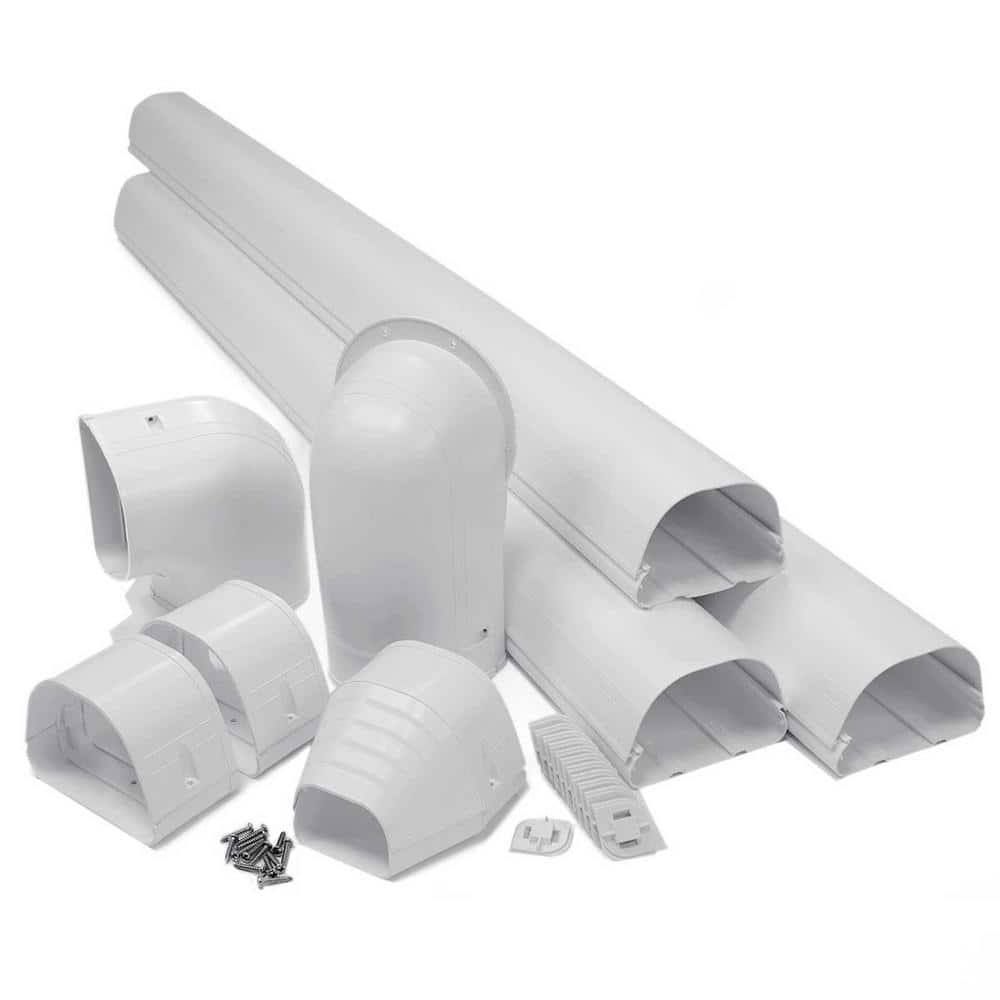

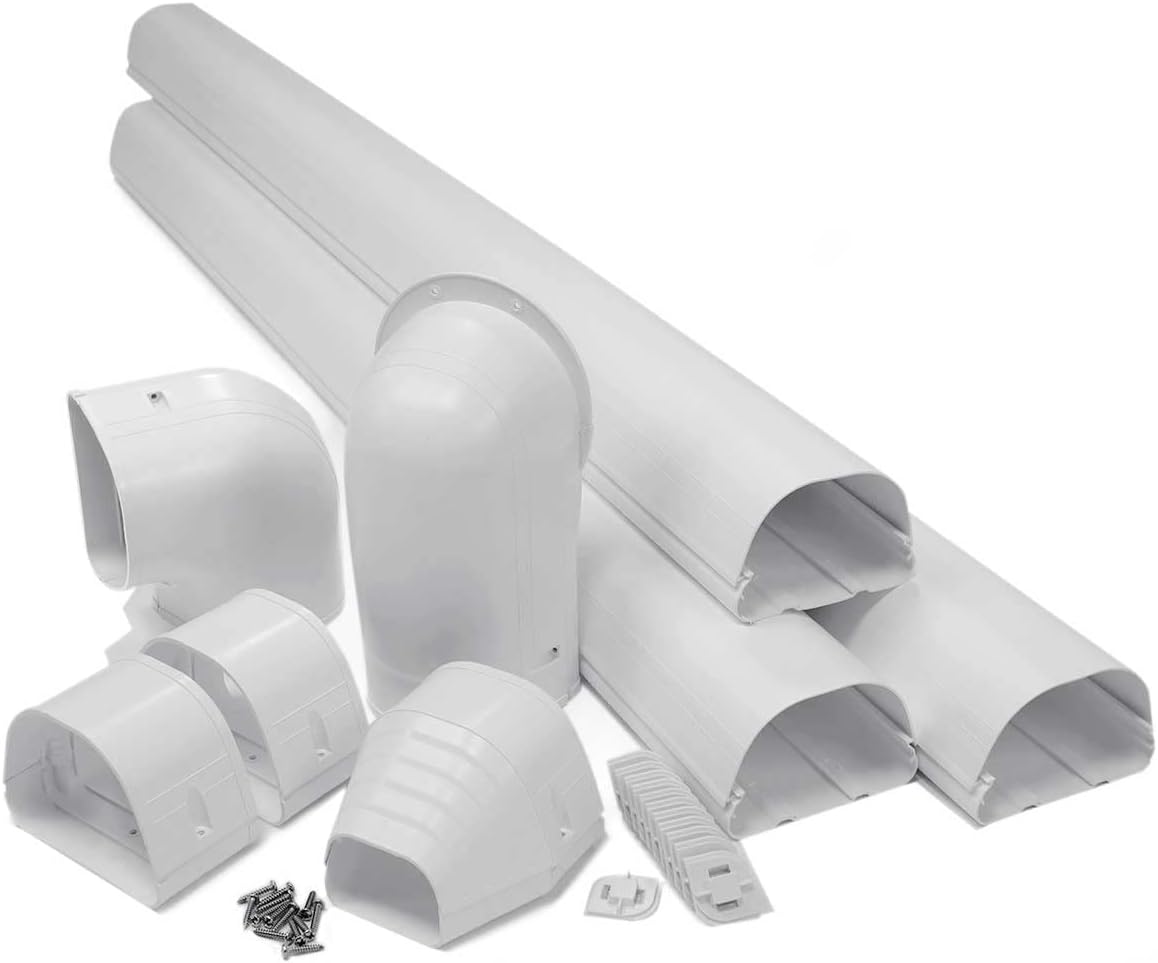

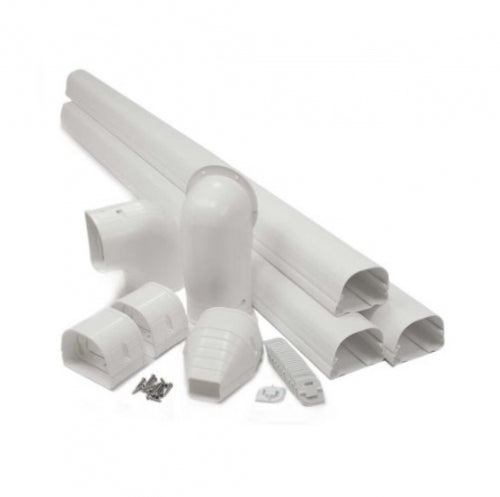

• Includes: (3) 4-ft ducting sections; (2) couplers; (1) wall inlet; (1) end fitting; (1) 90° flat ell
• Installation Method: Self-adhesive (snap-together sections; supplied fittings for wall installation)
• Assembly: Snap-together sections
• Resistance: UV stabilized; weather and fire resistant
• Application: Conceal and protect refrigerant line sets, electrical cable and drain hoses for HVAC systems (mini-splits, high-velocity, conventional split systems)
• Country of Origin: USA
• UPC: 021449841054
• Item Weight (lbs): 10.11
• Package Dimensions: 48.125 x 12.5 x 4.3125 inches (length x width x height)
