Product Information

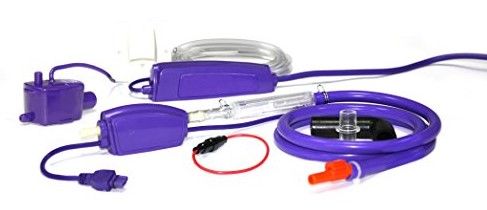

V Mini-Split Condensate Pump Kit, 100-250 Volt, 3.8 GPH @ 0' Head / 1.8 GPH @ 33' Head Capacity, 66,000 BT
Us, 21d
B(A) Sound, 3A NC Dry Contact Rating, 0.15 Amp, 16 Watt, Remote Reservoir
Feature:
Compatible with all mini-split air conditioners brands/models and Quick and easy to install
Silent+ and Univolt technology and Plug and Play connection
3A NC dry contacts rated @ 5A inductive at 230V AC for overflow protection
Quiet and Fully potted (complete assembly is epoxy filled for resistance to shock, vibration, moisture, chemical and promotes sound dampening, US Patent #6,817,194)
Self-priming
Specifications:
ADA Compliant: No
AMP: 0.15
Adjustable: No
BTU: 66000
CSA Certified: No
Collection: Aspen Micro
V
Color Finish: Purple
Color Finish Category: Purples
Discharge: 1/4 in
End Connection 1: Compression
End Connection 2: Meter Swivel Nut
End Connection 3: Meter Swivel Nut
End Connections: Compression x Meter Swivel Nut x Meter Swivel Nut
Fitting Size 1: 3/4 in
Fitting Size 2: 3/4 in
Fitting Sizes: 3/4 in
Flow Rate: 3.8 gph @ 0 Head/1.8 gph @ 33 Head
Height: 14 in
Length: 3-3/4 in
MBH: 66
Material: Plastic
Material Type: ABS
Maximum Pressure: 100 psi
Maximum Temperature: 150
Minimum Temperature: 35
Power Source: Electric
Pump Application: Self-priming
Pump Body Material: ABS
Pump Phase: 1
Pump Stage: 1
UL Listed: No
Valve Size: 3/4 in
Volts: 100/250V
Watts: 16
Width: 2-1/2 in
