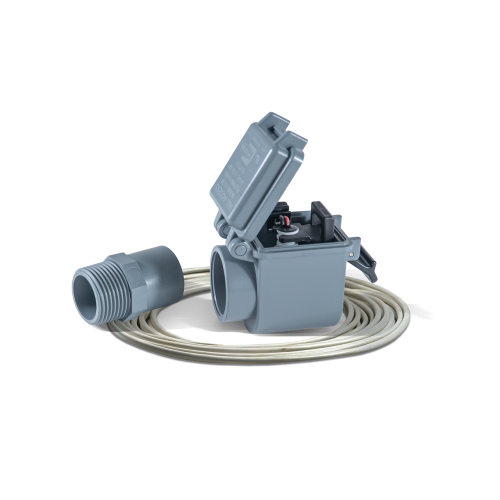

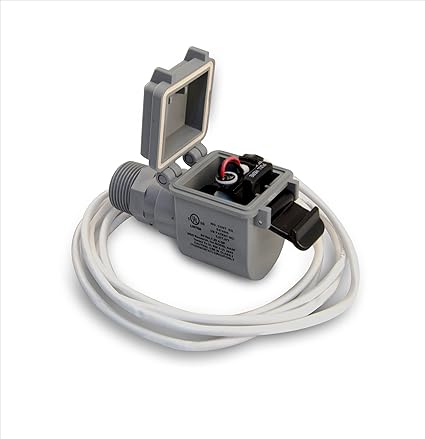

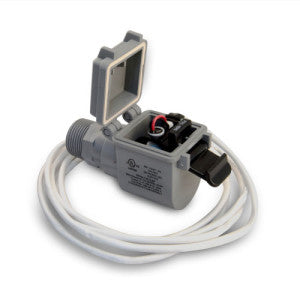

Rectorseal 83417 All-Access AA2P Condensate Shut-Off Float Switch for Primary Drain Pan Auxiliary Outlet - Plenum Rated

Product Description

The Rectorseal 83417 All-Access AA2P is crucial for preventing water damage from clogged air conditioner condensate drains. This float switch automatically shuts off the cooling system when it detects a clog, ensuring efficient operation in HVAC systems. It mounts on the auxiliary outlet of the primary drain pan using an included three-quarter inch adapter, and it is easily removable for cleaning.

• Detects clogs and automatically shuts off cooling systems.
• Installs on auxiliary drain outlets; no leveling required.
• Features patented magnetic reed switch for versatile installation.

Product Highlights

Designed to enhance HVAC performance by detecting and addressing potential condensate issues.

Product Information

Standard Information

• Product Line: All-Access
• Product Category: Mini Split Accessories

Technical Specifications

• Application: Condensate Drain Line
• Material: CPVC
• Voltage: 24 Volts
• Current Draw: 1.25 Amps
• Dimensions: 8.5 inches (H) x 1.88 inches (W) x 7 inches (L)
• Power Cord Length: 6 Feet
• UL Listed: Yes
• Supply Voltage: 24 VAC
• Relay Type: Magnetic, Solid state
• Switching Capability: 1.25A, 2.3A
• Plenum Rating: Yes
• Mounting Orientation: Auxiliary, Drain Pan
• Wire Length: 6 ft (1.8m), 18 AWG
• Warranty: 1 year
• Included Components: All Access AA2P Plenum Rated
• Batteries Required: No
